M10 3" Gun Motor Carriage

Achilles I/IIC 17-pdr Self-Propelled Gun

Comme précité dans le page "Production", la Grande-Bretagne fut également dotée en M10s et M10A1s qu' elle baptisa Wolverines. Mais les Britanniques trouvaient le canon de 76 mm insuffisant et inférieur à leur canon antichar de 77 mm (17-pdr) Mark V.

Like above mentioned in the page "Production", Great Britain was also equipped with M10s and M10A1s which it baptized Wolverines. But the British found the gun of 76 mm insufficient and lower than their anti-tank gun of 77 mm (17-pdr) Mark V.

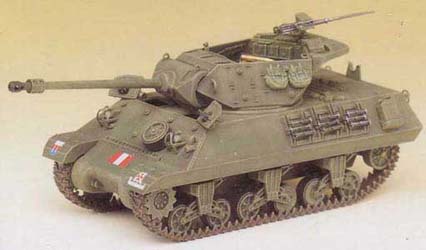

17-pdr(77 mm) Gun Motor Carriage Achilles IIC
src: Academy



Le canon de 77 mm fut donc installé sur un certain nombre d' exemplaires avec quelques modifications. En effet pour équilibrer le canon britannique (doté d' un plus long tube), un contrepoids fut installé à l' extrémité du tube juste derrière le frein de bouche (à double déflecteur). Le collier du bouclier du canon dut être élargi pour compenser le diamètre moindre du canon de 77 mm par rapport à celui du 76 mm (épaisseur d' acier moindre). La culasse fut dotée également de petites modifications pour être installée dans la tourelle du M10. Le canon de 77 mm possédait une élévation de 20° et une dépression de 5° seulement. Le 77 mm britannique était supérieur au 76 mm américain. D' autres changements furent portés à l' intérieur pour conformer le char aux usages britanniques.

The gun of 77 mm was thus installed on a certain number of specimens with some modifications. Indeed to balance the British gun (equipped with a longer tube), a counterweight was installed at the end of the tube just behind the muzzle brake (with double deflector). The collar of the shield of the gun had to be widened to compensate the less diameter of the gun of 77 mm compared to that of the 76 mm (less thickness of steel). The cylinder head was also equipped with small modifications to be installed in the turret of M10. The gun of 77 mm had an elevation of 20° and a depression of 5° only. The British 77 mm was higher than the American 76 mm. Other changes were carried inside to conform the tank to the British uses.



77 mm Mk V - Penetration board (mm)
Ammo
Weight(kg)
Velocity
Angle (°)
100 m
500 m
1000 m
1500 m
2000 m
APCBC
792 m/s
30
?
110-120
100-110
91-100
85-90
APDS
1120 m/s
30
?
178
149
131
120
HE
502 m/s
30
?
?
?
?
?

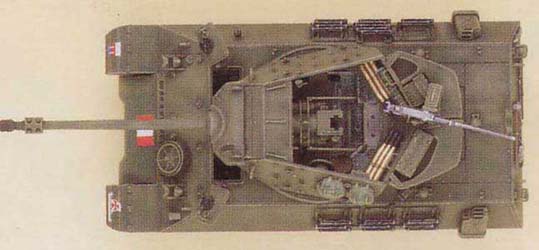

17-pdr(77 mm) Gun Motor Carriage Achilles IIC
src: Academy



Les modèles ainsi armés furent baptisés Achilles par les Britanniques: Achilles IC pour les modèles basés sur le M10 et dotés des tourelles de début de production (peu furent convertis en raison du déséquilibre causé par le long tube de 77 mm) - Achilles IIC pour les modèles basés sur le M10A1 et dotés de tourelles avec contrepoids à l' arrière (majorité des modèles convertis).

The models thus armed were baptized Achilles by the British: Achilles IC for the models based on M10 equipped with the turrets of beginning of production (little was converted because of the imbalance caused by the long tube of 77 mm) - Achilles IIC for the models based on M10A1 equipped with turrets with counterweight to the back (majority of the converted models).

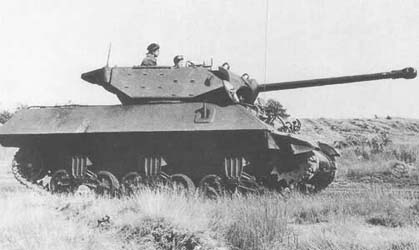

17-pdr(77 mm) Gun Motor Carriage Achilles IIC
src: Belgian Army
