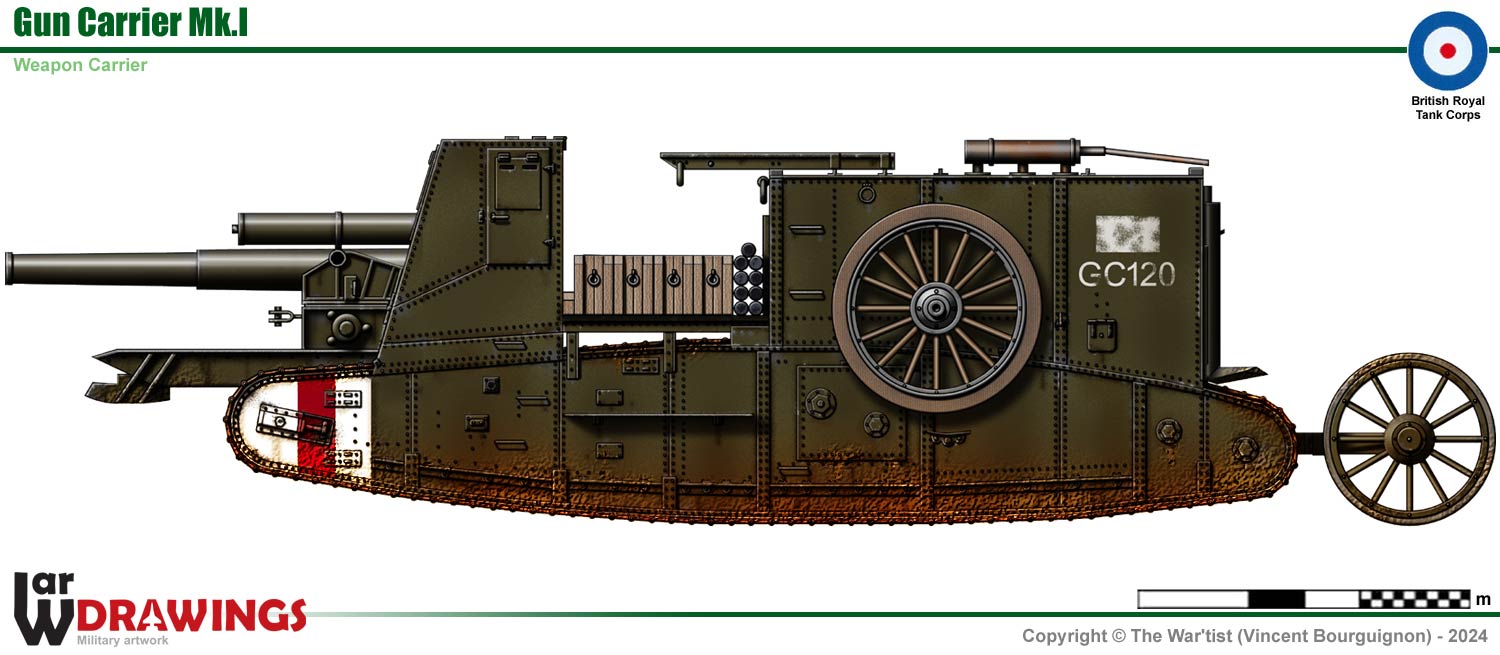

Vehicle carrying a gun of 60 pounder BL Mark I. The gun was to be removed and re-assembled on the ground to make fire. The howitzer 6 inch BL howitzer as for it could be used in situ (option undoubtedly ever used in situation of combat). Many vehicles were used without gun as ammunition or quipment carriers…



Role: Self-Propelled Gun/Carrier
Crew: 4 + gun crew
In service: 1917
Length: 9.10 m (empty) - 10.80 m (full) | Width: 3.40 m | Height: 2.85 m | Weight: 25.4 t (empty) - 34t (full)
Daimler 105PS petrol engine | 105 hp | Power/weight: 3.1 hp/t
Performances
Maximum speed: 6 km/h | Range: ? km | Suspension: Unsprung
Armor
6–12 mm
Armament
Main: none or 6 inch (152.4 mm BL howitzer or 60 pounder (127.0 mm) BL Mark I.
Secondary armament: 1 x .303(7.62 mm) Hotchkiss MG



Gun Carrier Mk.I 1/72Canadian Sweeties - Diorama
