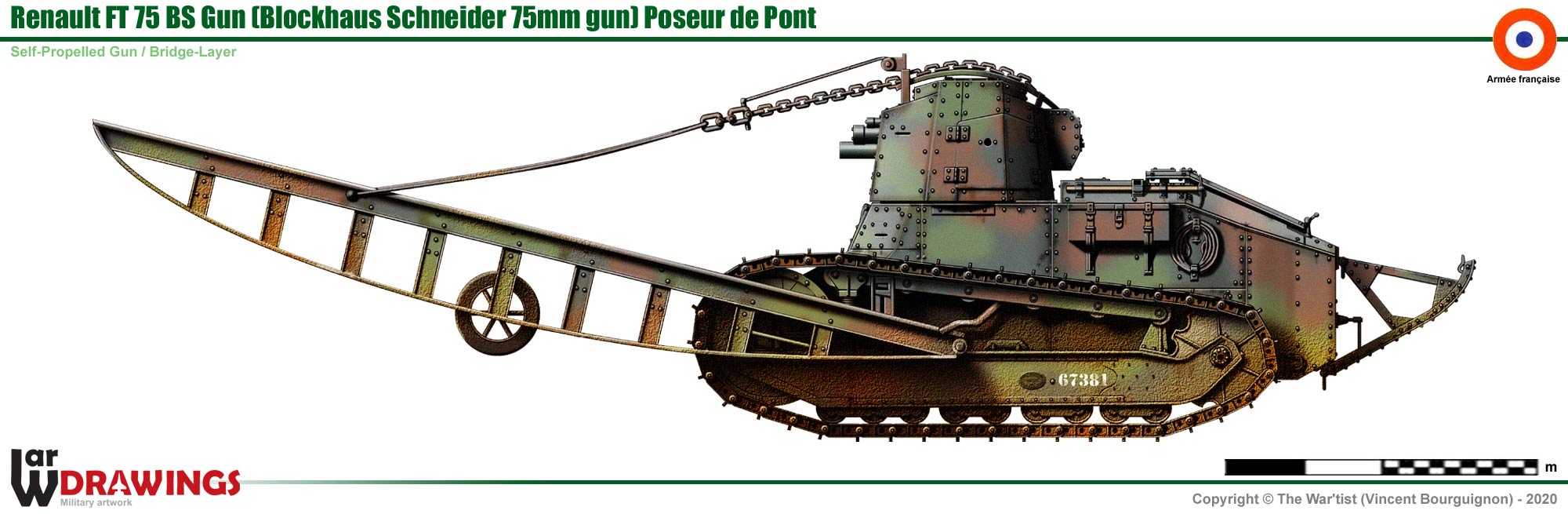

Modified version
for the laying of a bridge allowing the crossing of trenches for other
tanks. The bridge over the trench was freed by unwinding the cable controlled by a chain from the casemate. |
| Specifications |
| General |
| Role: Self-Propelled Gun / Bridge-layer Crew: 2 Designed: ? |
| Dimensions |
| Length: 4.95 m | Width: 1.73 m | Height: 2.13 m | Weight: 6.7 t |
| Engine |
| Renault 4-cyl petrol | 35 hp | Power/weight: 5 hp/t |
| Performances |
| Maximum speed: 8 km/h | Range: 65 km | Suspension: vertical springs |
| Armor |
| Maximum: 22 mm, Minimum: 6 mm |
| Armament |
| Main: 1 x 75 mm howitzer Secondary armament: - |
