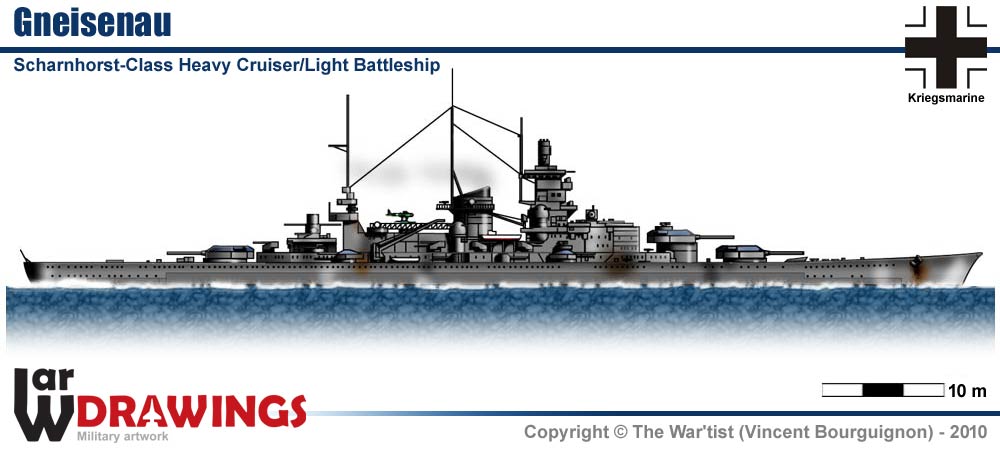

Class Scharnhorst Specifications
General

Type: Battle-Cruiser
Crew: 1669
Dimensions/Masses
Maximum displacement: 38900 t | Length: 235 m
Width: 30 m | Draught: 9.69 m
Propulsion/Performances
Maximum speed: 33 kt
Range: 8400 nm at 19 kt
3 Germania geared turbines, 3 shafts (151893 shp)
Armor
  • Main belt: 350 mm (13.78 inch)
  • Deck: 95 mm max.
Armament
  • 9 × 28 cm/54.5 (11") SK C/34
  • 12 × 15 cm/55 (5.9") SK C/28
  • 14 × 10.5 cm/65 (4.1") SK C/33
  • 16 × 3.7 cm/L83 (1.5") SK C/30
  • 10 (later 16) × 2 cm/65 (0.79") C/30 or C/38
  • 6 × 533 mm torpedo tubes
  • 3 Arado Ar 196A-3 seaplanes
