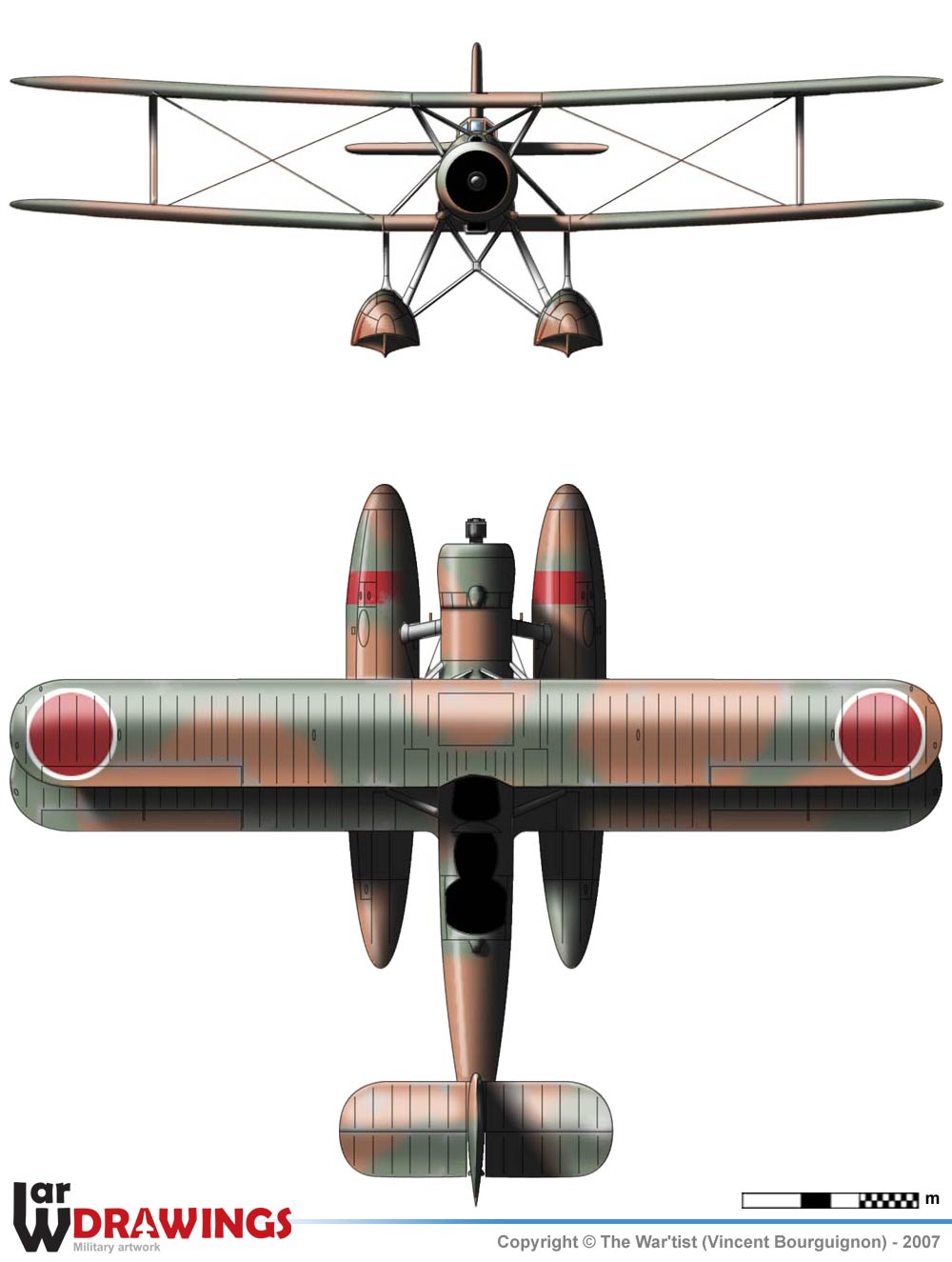

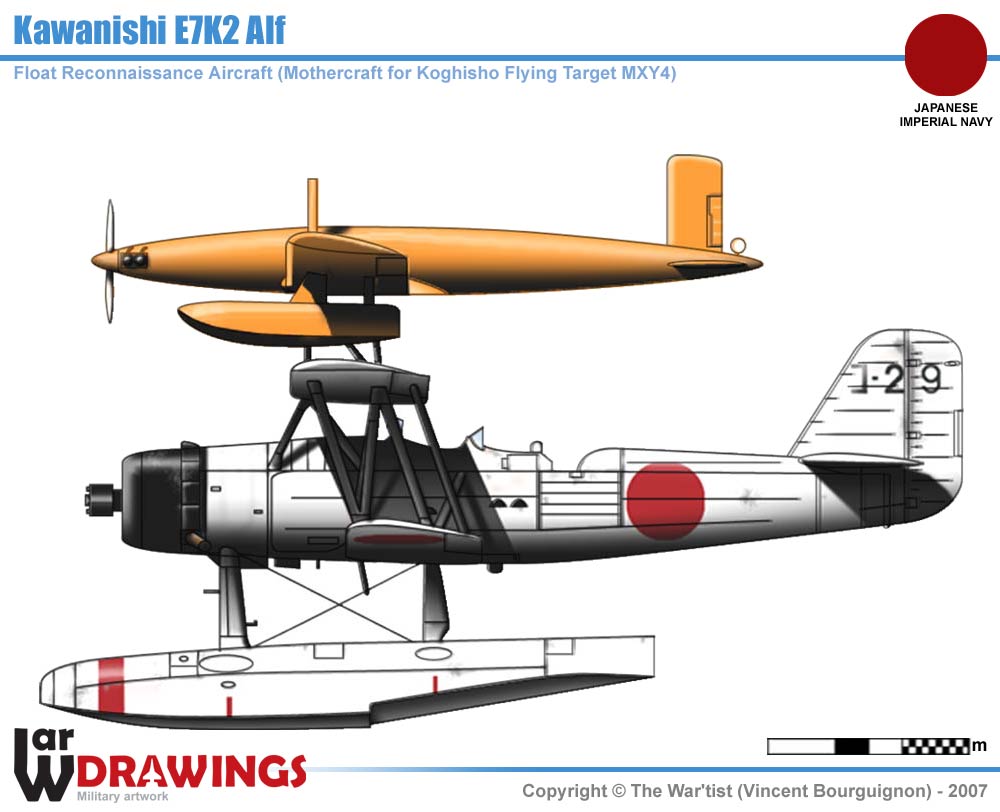

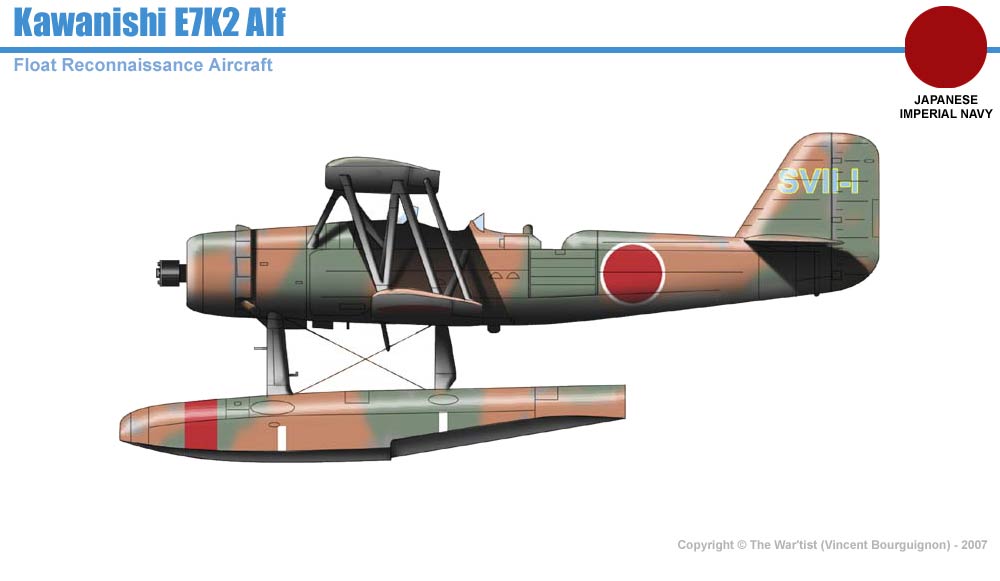

E7K2
Alf Specifications |
| General |
Type:
Reconnaissance floatplane |
| Engine |
| Mitsubishi Zuisei 11 radial | 870 hp | Pistons |
| Dimensions/Masses |
| Length: 10.50 m |
Width: 14.00 m | Height:
4.85 m Weight: 2100 kg | Max. Combat Weight: 3300 kg |
| Performances |
| Max. Speed: 275 km/h | Ceiling: 7060 m | Range: ? km |
| Armament |
MG:
3 x 7.7mm Type 92 MG |
