Stab/SG 2 - East Front, 1944-1945

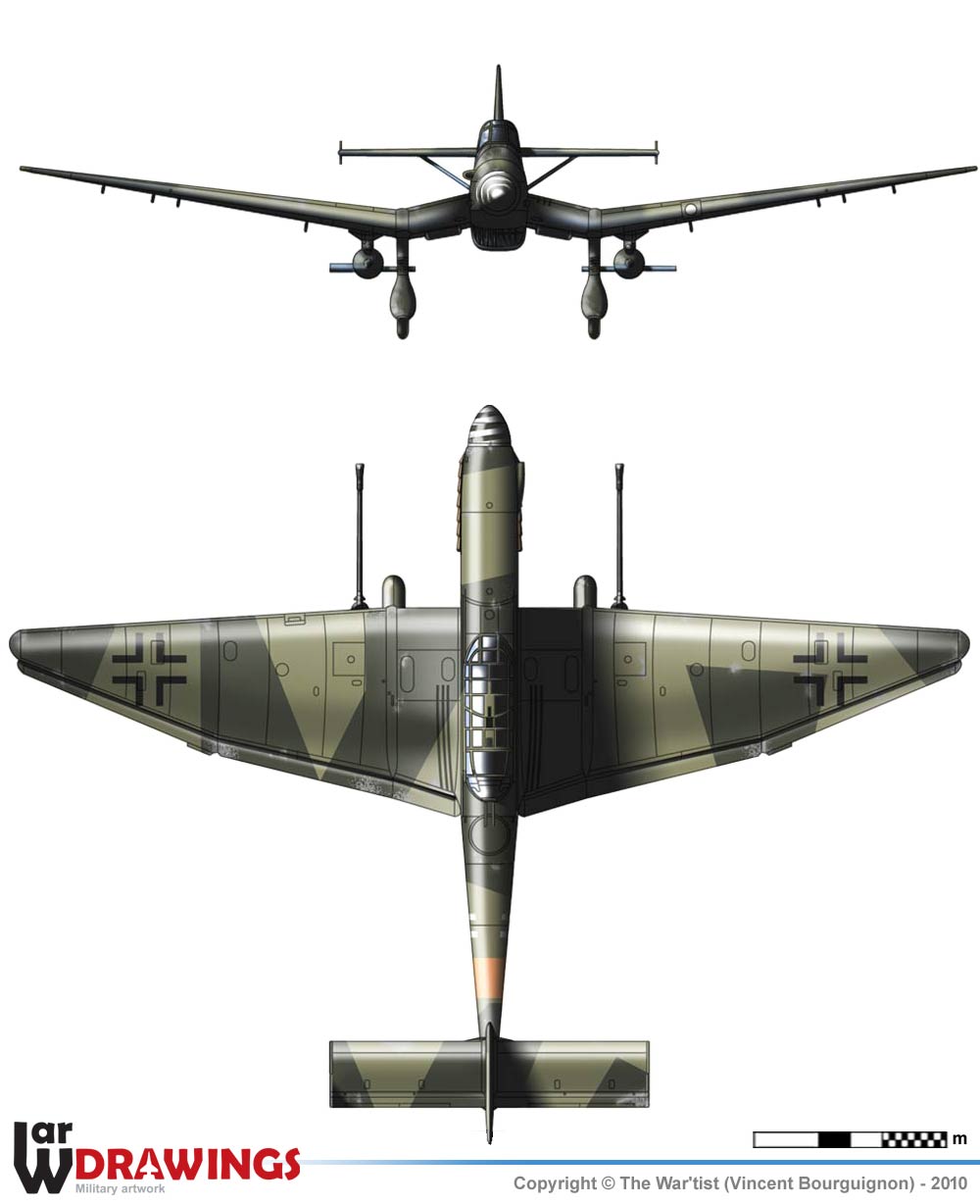

Ju-87G-2 Specifications

Type: Tank Destroyer Aircraft
Crew: 2

Junkers Jumo 211J-1 | 1410 hp | Pistons
Dimensions/Masses
Length: 11.10 m | Width: 15.25 m | Height: 3.90 m
Weight: 3930 kg | Max. Combat Weight: 5960 kg
Performances
Max. Speed: 396 km/h | Ceiling: 7360 m | Range: 1530 km
Armament

MG: 2 x 37mm BK (outside) & 2 x 7.92 mm MG 81Z
Bombs: 4 x 50 kg of bombs (outside in place of 37mm Guns)
