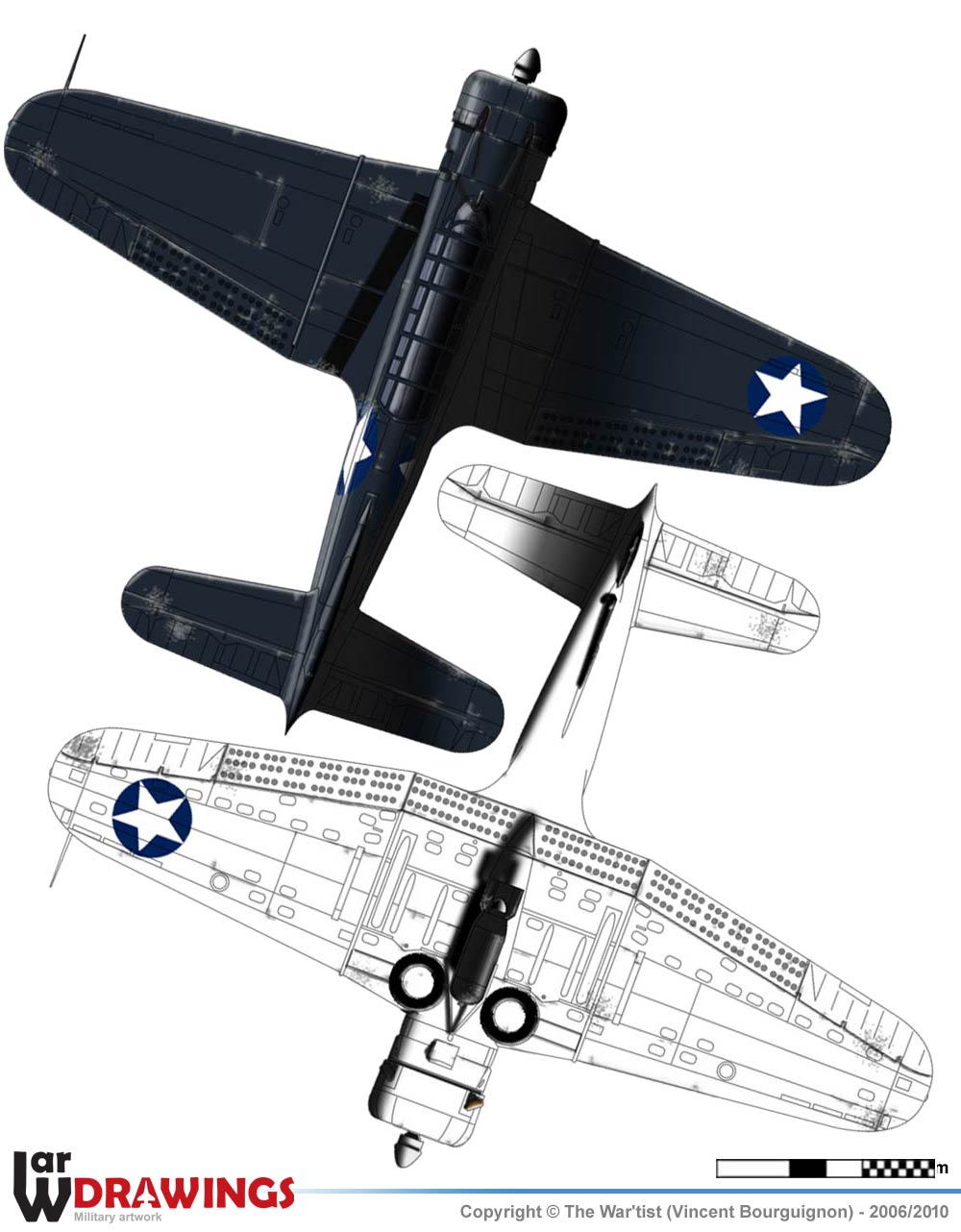

Top: From the Air Group off the CV-7 USS Wasp participated in attacks on Guadalcanal on 7 August 1942.
Bottom: VS-51 Squadron - USS Ranger, Pacific, August 1942.



SBD-3 Dauntless Specifications

Type: Shipborne Reconnaissance Bomber
Crew: 2

Wright R-1820-52 Cyclone | 1000 hp | Pistons
Dimensions/Masses
Length: 10.06m | Width: 12.65 m | Height: 3.94 m
Weight: ? kg | Max. Combat Weight: 4266 kg
Performances
Max. Speed: 402 km/h | Ceiling: 8259 m | Range: 1244 km
Armament

MG: 2 x 12.7mm M2 BMG & 2 x 7.62mm Browning M2
Bombs: 1 x 726 kg & 2 x 295 kg bombs (outside)
