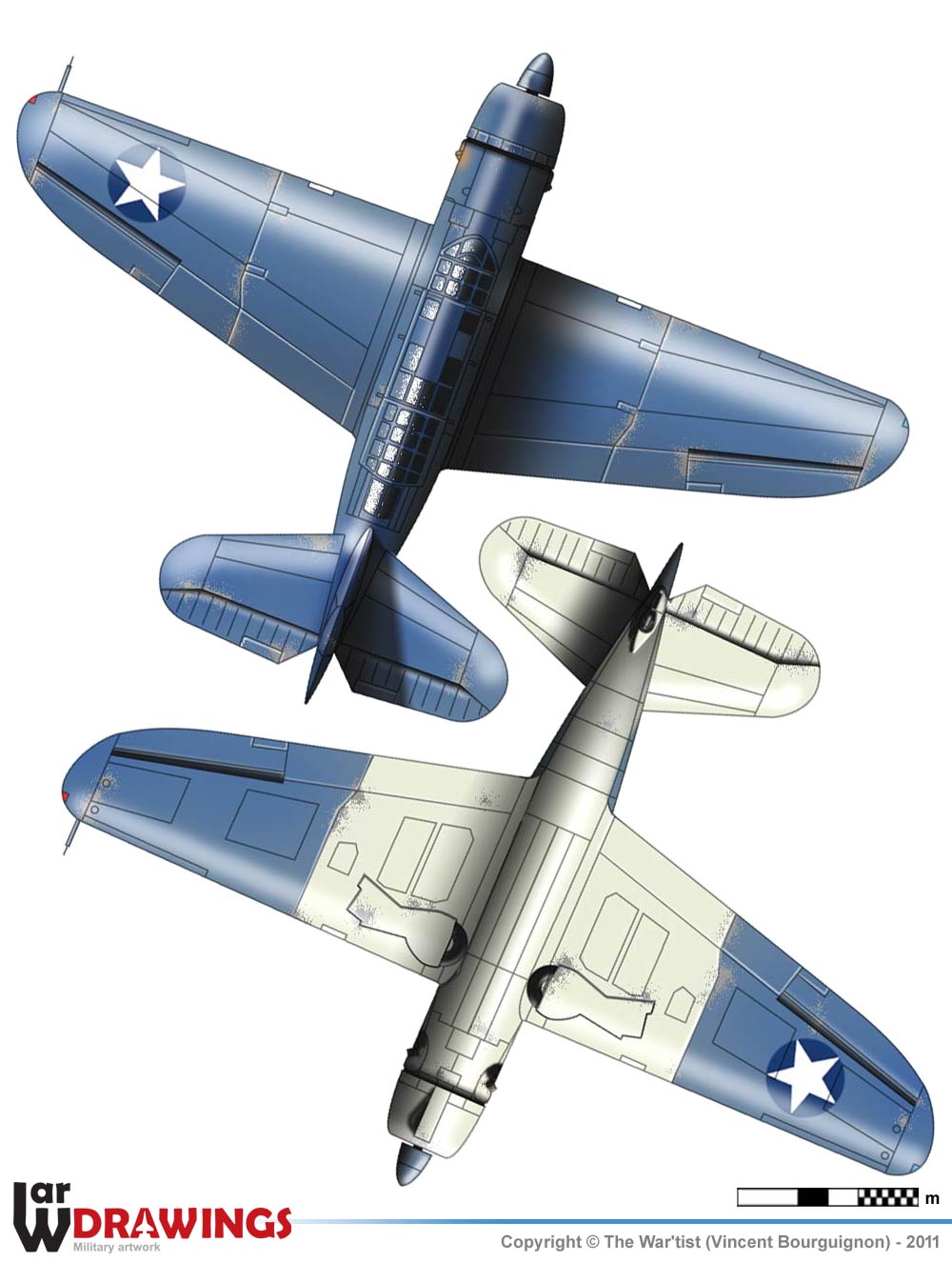

VB-17, US Navy - NAS Norfolk, circa 1943.

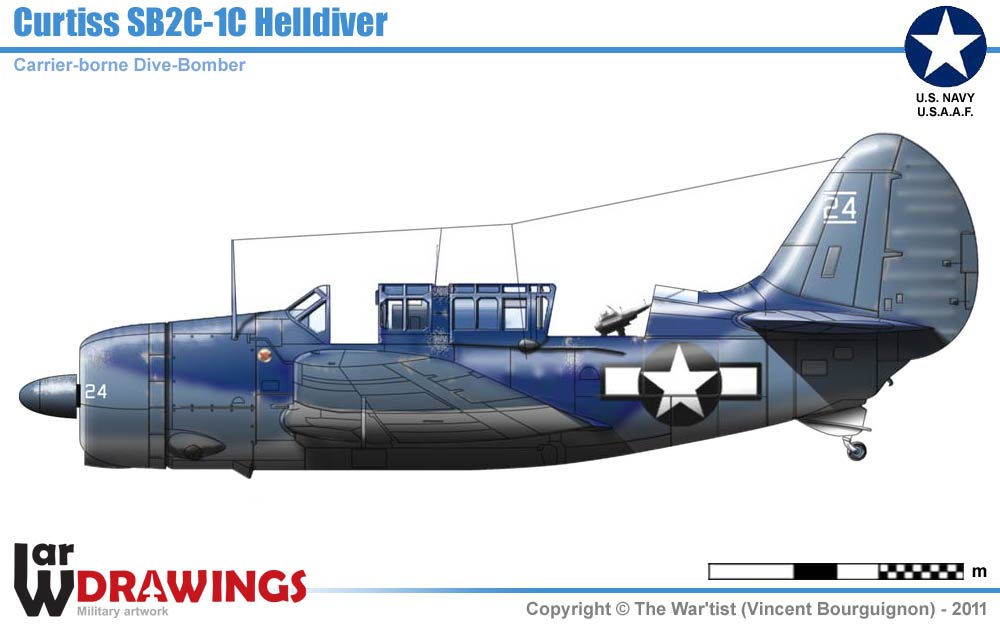

VB-8 (CAG-8), US Navy - CV-17 USS Bunker Hill, June 1944.



SB2C-1 Helldiver Specifications

Type: Shipborne Reconnaissance Bomber
Crew: 2

Wright R-2600-8 'Double Cyclone' | 1700 hp | Pistons
Dimensions/Masses
Length: 11.20 m | Width: 15.20 m | Height: 5.10 m
Weight: 4990 kg | Max. Combat Weight: 7530 kg
Performances
Max. Speed: 452 km/h | Ceiling: 7530 m | Range: 1786 km
Armament

MG: 4 x 12.7mm M2 BMG & 2 x 7.7mm Browning M2
Bombs: 454 kg of bombs (max) (inside)
