Bergetiger Armored Recovery Vehicle

En Novembre 1944, un Tiger I de mi-production endommagé près d'Anzio en Italie fut convertis par le sPzAbt 508 en un véhicule spécial de soutient. Son canon fut enlevé et sa tourelle fixée. Sur la tourelle fut installée une grue d'élévation. Il fut perdu entre le 20 et le 25 Mai 1944 et ensuite capturé par les Britanniques. La polémique à propos de ce véhicule comme char de récupération (?) vient du fait que l'on considère que son treuil manuel, manipulé par la force des bras de deux hommes était impropre à cet usage contrairement aux puissants treuils motorisés des Bergepanthers et même du Bergepanzer 38(t). Cependant le Bergetiger comme le démontrent les photos étaient équipés à l'avant d'un curieux dispositif qui permettaient de monter des barres de remorquage en forme de V qui pouvaient être connectées aux boucles de remorquage d'un Tigre standard. Les Tigres standard étaient en principe dotés de câbles pour remorquer un autre Tigre mais un char Tigre avec son moteur de 700 ch était tout juste capable de bouger son propre poids de 57 tonnes, et était incapable de tracter un congénère ne fuse que sur quelques kilomètres. En fait ses câbles servaient juste pour dégager un congénère embourbé en tombé dans un ravin et de préférence avec deux autres Tigres minimum. Les Allemands utilisaient aussi trois tracteurs FAMO (Sd.Kfz.9) pour récupérer les Tigres en panne mais diriger un tel convoi "exceptionnel" était hasardeux, surtout dans les courbes. En fait le transport et et la récupération des chars Tigres posa toujours un gros problèmes aux Allemands. Dès lors quel usage pouvait bien avoir le Bergetiger. On peut penser raisonnablement que la suppression du système d'armement, des munitions et du système hydraulique de rotation de la tourelle, procura au véhicule un gain de poids appréciable (1-2 tonnes ?). De plus était-il nécessaire de conserver 5 hommes d'équipage ? Un pilote et deux mécaniciens devait suffire non. Dans ces conditions le véhicule pouvait disposer d'une amélioration de son rapport puissance (du moteur)/poids, ce qui pouvait lui procurer une plus grande capacité de traction et cela sur une plus grande distance (qui ne devait pas être énorme cependant). Malgré le tout le fait que contrairement aux autres Bergepanzers on ait conserver la tourelle du Tigre est étonnant. Elle ne sert plus a rien de fait et disposer un treuil pivotant directement dans le puits de tourelle vide ou sur la circulaire de tourelle aurait été nettement plus judicieux à mon humble avis.

In November 1944, Tiger I of mid production damaged close to Anzio in Italy was converted by the sPzAbt 508 into a special vehicle of support. Its gun was removed and its turret fixed . On the turret a crane was installed. It was lost between the 20 and on May 25, 1944 and then captured by the British. The polemic in connection with this vehicle like tank of recovery (?) comes owing to the fact that it is considered that his hand winch, handled by the force of the arms of two men was unsuitable for this use contrary to the powerful power winches of Bergepanthers and even of Bergepanzer 38 (t). However Bergetiger as the photographs show it were equipped on the hull nose of a curious device which made it possible to move up tow bars in the shape of V which could be connected to the loops of towing of a standard Tiger. The standard Tigers were equipped in theory with cables to tow another Tiger but a Tiger tank with its engine of 700 hp was just able to move its own weight of 57 tons, and was unable to tractor draw another Tiger only on a few kilometers. In fact its cables were used for just to release emsabled Tiger or a Tiger fallen in a ravine and preferably with two other Tigers minimum. The Germans used also three tractors FAMO (Sd.Kfz.9) to recover the broken down Tigers but to direct such an "exceptionnel" convoy was hazardous, especially in the curves. In fact the transport and the recovery of the Tigers tanks always posed large problems to the Germans. Consequently which use could have Bergetiger. One can think reasonably that the suppression of the weapon-system, the ammunition and the hydraulic system of rotation of the turret got for the vehicle an appreciable profit of weight (1-2 tons?). Moreover it was necessary to preserve 5 crewmen ? A driver and two mechanics were to be enough not. Under these conditions the vehicle could lay out an improvement of his power (engine)/weight, which could get a greater capacity of traction and that to it at a longer distance (which was not to be enormous however). In spite of the whole the fact that contrary to other Bergepanzers one has to preserve the turret of the Tiger is astonishing. It is not useful now, in fact and to lay out a winch swivelling directly in the empty turret basket or on the turret ring would have been definitely more judicious in my humble opinion.

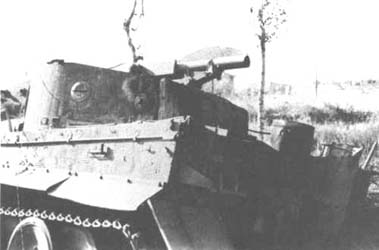

Bergepanzer VI Ausf.E Bergetiger



La potence était tout juste limite pour effectuer des tâches d'atelier comme retirer des moteurs. Beaucoup de chars moyens étaient disponibles pour être équipé en bergepanzer (seul la motorisation posait un (gros) problème), pourquoi un Tigre, beaucoup trop précieux comme char de combat. Cependant on ne peut tout à fait abandonner le rôle de véhicule de récupération standard, car un autre Bergapanzer lourd fut créé sur base des châssis disponibles du Tigre de Porsche abandonné (lui fut aussi utilisé pour le Ferdinand/Elefant). Le Bergepanzer Tiger(P) (SdKfz.181) ne disposait plus de tourelle, mais une petite superstructure blindée disposée à l'arrière. Il était équipé d'une potence encore plus fragile que celle du Bergetiger, mais aussi comme lui de barres de remorquage, mais était plus léger. Hors le Bergepanzer Tiger(P) fut produit à une quinzaine d'exemplaires. Ces véhicules à raison de un véhicule par bataillon, équipèrent les bataillons de chars lourds (Tigre I) et de Panzerjägers lourds (Ferdinand/Elefant). On peut penser que les Allemands préférèrent utiliser le Bergepanzer Tiger(P) qui le les privaient pas de chars de combat contrairement au Bergetiger. Le Bergetiger fut produit à trois exemplaires seulement. Le Bergetiger était très limité comme véritable char de récupération. Il est pour moi plutôt un véhicule de support en zone de combat, pour effectuer des petites maintenances rapides et tracter tout au plus sur quelques centaines de mètres (hors de portée de tir direct) un Tigre endommagé. Rappelons que contrairement au Bergepanzer Tiger(P), le Bergetiger est et resta une conversion de terrain.

Autre pistes: Le Bergetiger était-il destiné à transporter des charges explosives ? Sûrement pas des charges lourdes car le manque de protections suffisantes, aurait été beaucoup trop dangereux pour les deux pauvres gars chargés du manoeuvrer le treuil. Il est plus probable que la grue du Bergetiger servait à déposer des charges de 200-300 kg tout en offrant grâce au blindage du Tigre une protection nettement meilleure sous le feu de l'ennemi que celle offerte par les petits et légers Borgward DCL utilisés normalement pour cette tâche. Une autre idée intéressante était l'utilisation du treuil du Bergetiger pour manipuler une masse balayeuse de mines.

The crane was very right limit to realize tasks of workshop like withdrawing engines. Many medium tanks were available to be equipped in bergepanzer (only the motorization posed one (large) problem), why a Tiger, too much invaluable like battle tank. However one cannot completely give up the role of standard vehicle of recovery, because another heavy Bergapanzer was created on the basis of chassis available of the abandoned Tiger of Porsche (was also used to for Ferdinand/Elefant). Bergepanzer Tiger (P) (SdKfz.181) did not have turret any more , but a small rear armored superstructure. It was equipped with an a crane even more fragile than that of Bergetiger, but also like it of tow bars, but was lighter. Bergepanzer Tiger (P) was produced to about 15 specimens. These vehicles at a rate of a vehicle per battalion, equipped the battalions of heavy tanks (Tiger I) and with heavy Panzerjägers (Ferdinand/Elefant). One can think that the Germans preferred to use Bergepanzer Tiger (P) which it did not deprive them of battle tanks contrary to Bergetiger. Bergetiger was produced at three specimens only. Bergetiger was very limited like genuine tank of recovery. It is for me rather a vehicle of support in zone of combat, to realize small fast maintenances and at most to tractor draw on a few hundred meters (out of reach of a direct shooting) a damaged Tiger. Let us recall that contrary to Bergepanzer Tiger (P), Bergetiger is and remained a field conversion.

Other ideas: Bergetiger was intended to transport explosive loads? Surely not heavy loads because the lack of sufficient protections, would have been much too dangerous for two poor guys charged to operate the winch. It is more probable than the crane of Bergetiger was used to deposit loads of 200-300 kg while offering thanks to the shielding of the Tiger a definitely better protection under the fire of the enemy than that offered by small and light Borgward DCL used normally for this task. Another interesting idea was the use of the winch of Bergetiger to handle a sweeping mass of mines.

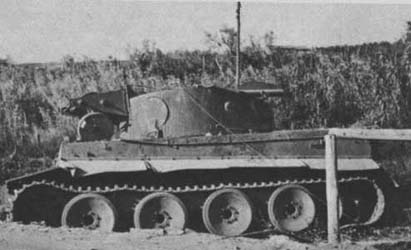

Bergepanzer VI Ausf.E Bergetiger

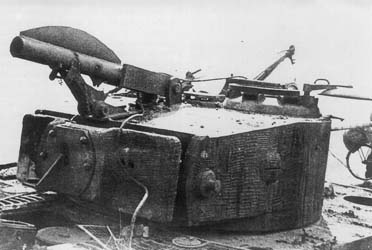

Bergepanzer VI Ausf.E Bergetiger
Barres de traction en V connectées à un char Tigre.
V towing-bars connected to a Tiger.



Data



Drawings



Bergetiger 1/35



Other Full-Tracks



Sources:

  • Mathieu Pascal
  • Tiger in action, Armor Number 27 (squadron/signal publications, inc.)
  • Connaissance de l'Histoire (Hachette) - N°17 - " Les chars de combat allemands 39-45"
  • Connaissance de l'Histoire (Hachette) - N°5 - " Véhicules blindés allemands 39-45"
  • Les Blindés de la Seconde Guerre Mondiale (Atlas)
  • Tiger I Heavy Tank 1942-1945 (Osprey Military) - New Vanguard N°5
  • Site "Achtung Panzer" - http://www.achtungpanzer.com
  • Site "Germany's vehicle history" - http://www.wwiivehicles.com
  • Site "Second World War Armour" - http://www.onwar.com/tanks/index.htm
