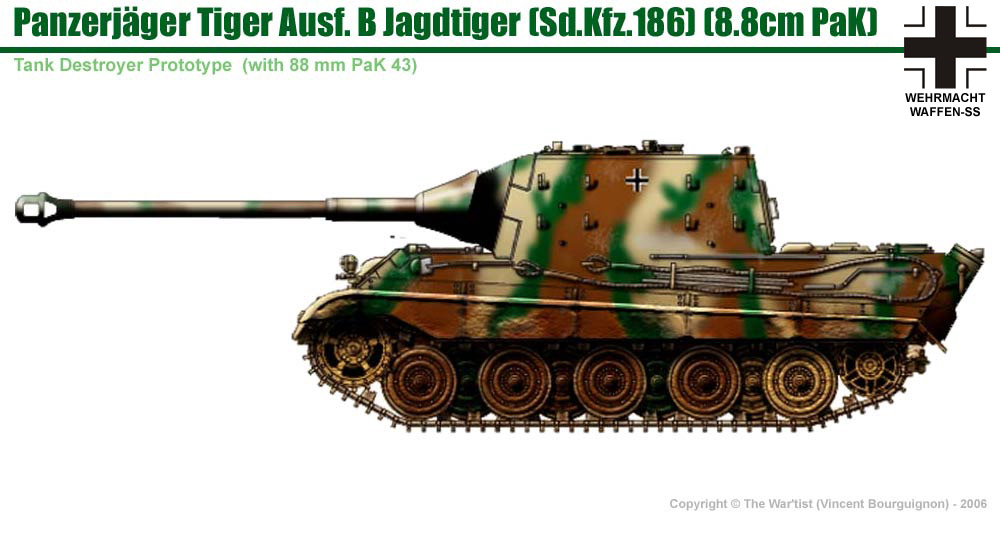

One of the rare
Jagdtigers armed with 88 mm Pak 43. This was due to shortages of the128
mm PaK 44 (Artist's view). |

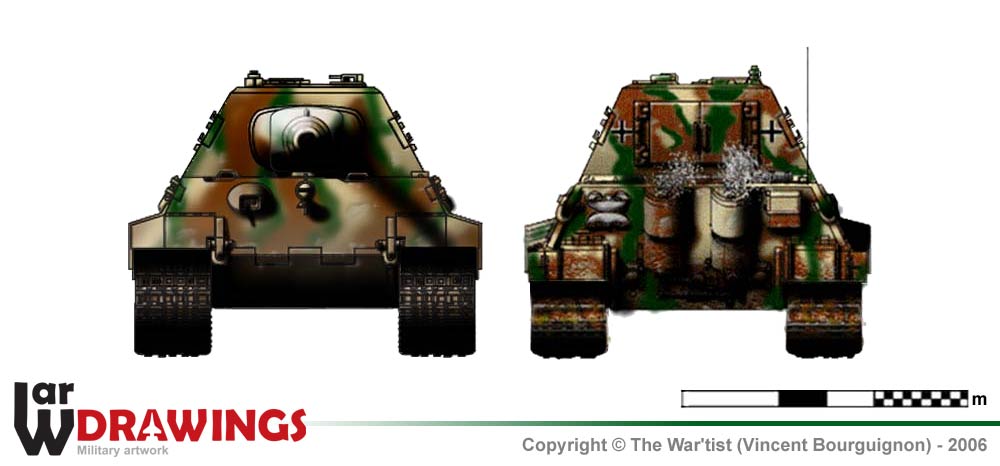

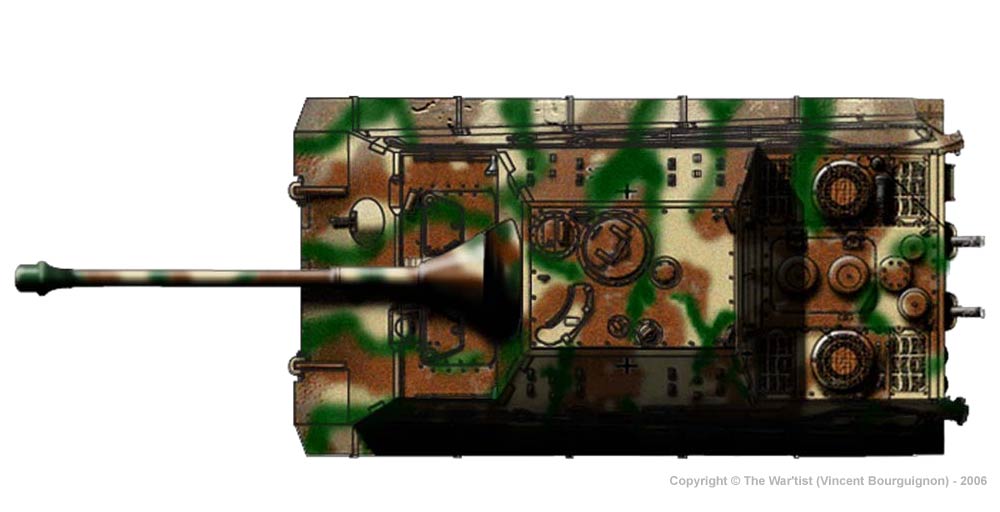

One of the rare
Jagdtigers armed with 88 mm Pak 43. This was due to shortages of the128
mm PaK 44 (Artist's view). The 7.92 mm MG 34/42 machine gun is mounted on the Fliegerdrehstüze 36 mount on the rear deck. |
Specifications |
| General |
Type:
Tank Destroyer |
| Engine |
| Maybach HL 230 P 30 gasoline | 700 hp |
| Dimensions/Masses |
| Length: 7.26 m / 10.57
m | Width: 3.63 m | Height:
2.95 m Weight: 68000 kg |
| Armor |
| Maximum: 80 mm to 250 mm |
| Performances |
| Max. Speed:
38 km/h | Power/weight: 10.3 hp/t | Range:
170 km Suspension: torsion bars |
| Armament |
Main:
88mm Pak 43/3 L/71 |
