2 Prototypes built. The F-IV-H was not a successful project. The Czech army was skeptical about long delivery period planned and insufficient performances during tests. Under German supervision, the vehicle was still not suitable for combat and in the early stage of the war already outdated. Both prototypes were scrapped during the war.

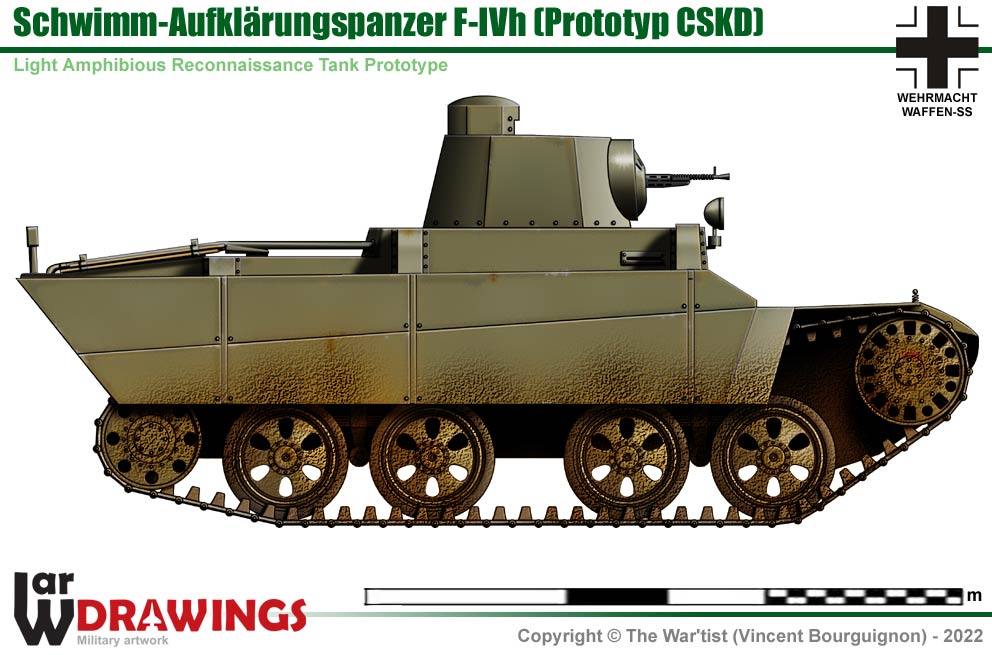

Type: Light Amphibious Reconnaissance Tank
Crew: 3 (commander, driver, radio operator)

Praga F-IV, 4-cylinder, petrol 120 hp
Dimensions/Masses
Length: 4.85 m | Width: 2.50 m | Height: 2.08 m
Weight: 6500 kg
Armor
Maximum:14 mm - Minimum: 7 mm
Performances
Max. Speed: 45 km/h (road), 6 km/h (water)
Power/weight: 20.4 hp/t | Range: 200 km
Suspension: semi-elliptic leaf springs
Armament

Main: 1 x 7.92mm ZB vz. 37 machinegun.
Secondary: -
