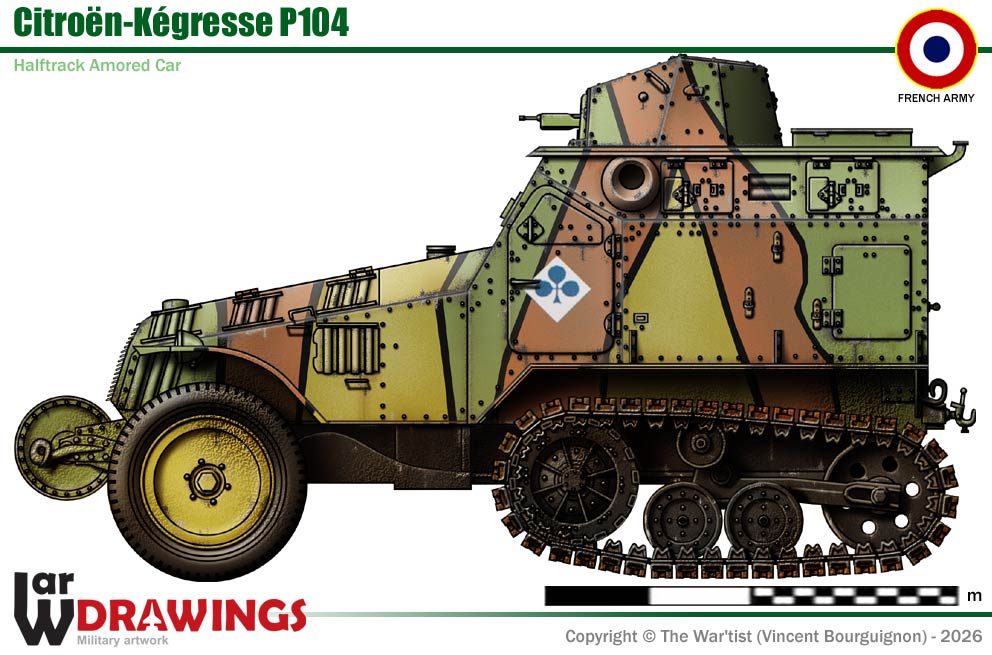

Djibouti, 1939.
Vehicle equipped with ventilation for hot climates. Twelve units of this colonial armored car were produced: three with turrets for the French Coast of Somaliland and nine without turrets for Indochina (as troop transports).

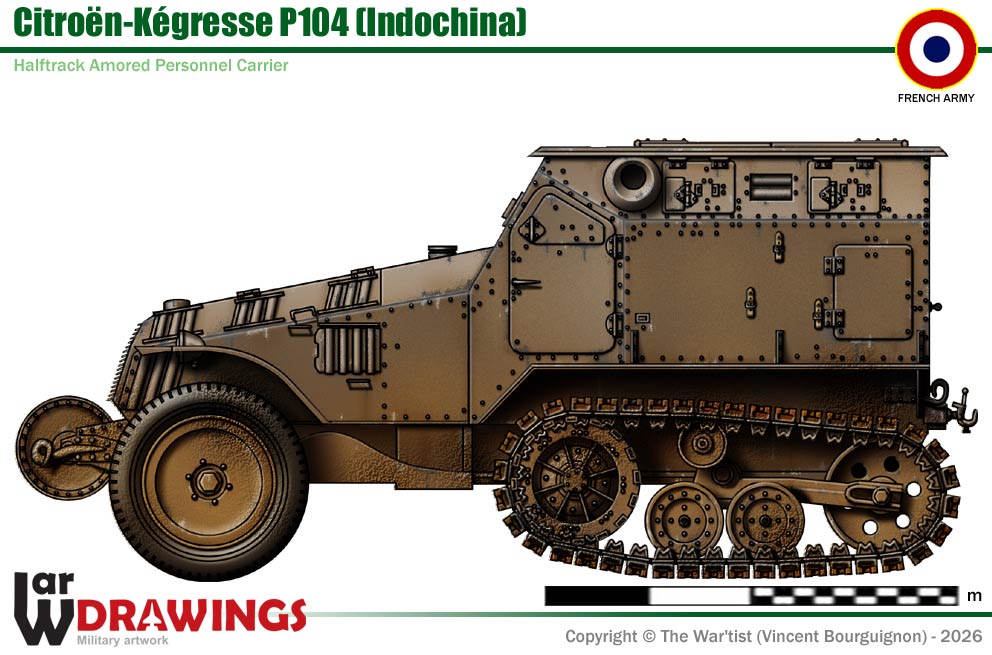

French Indochina.







DATA
General
  • Crew: 4 (commander, driver, 2 gunners)
  • Production: 12
  • Weight: 5000 kg (4750 without turret)
  • Length: 4.68 m - Height: 2.36 m (2 m without tuttet) - Width: 1.82 m - Ground Clearance: ? m
Armament
  • Main armament: 1 x 7.5 mm MAC-31 MG (turret) or 2 x 7.5 mm FM Mod. 24/29 (without turret)
  • Ammo: 5000
  • Secondary armament: -
  • Ammo: -
Armor
  • Maximum: 6 mm
Automotive
  • Engine: Citroën Type 4, 6-cylinder | 67 hp
  • Fuel capacity: 250 litres Gasoline
  • Suspension: Kégresse track
  • Power/weight: 13.4 hp/t
Performances
  • Maximum Speed: 40 km/h
  • Maximum Range: 450 km
