XIX
KAO, 1 BAG - May 1916 - August 1917. |

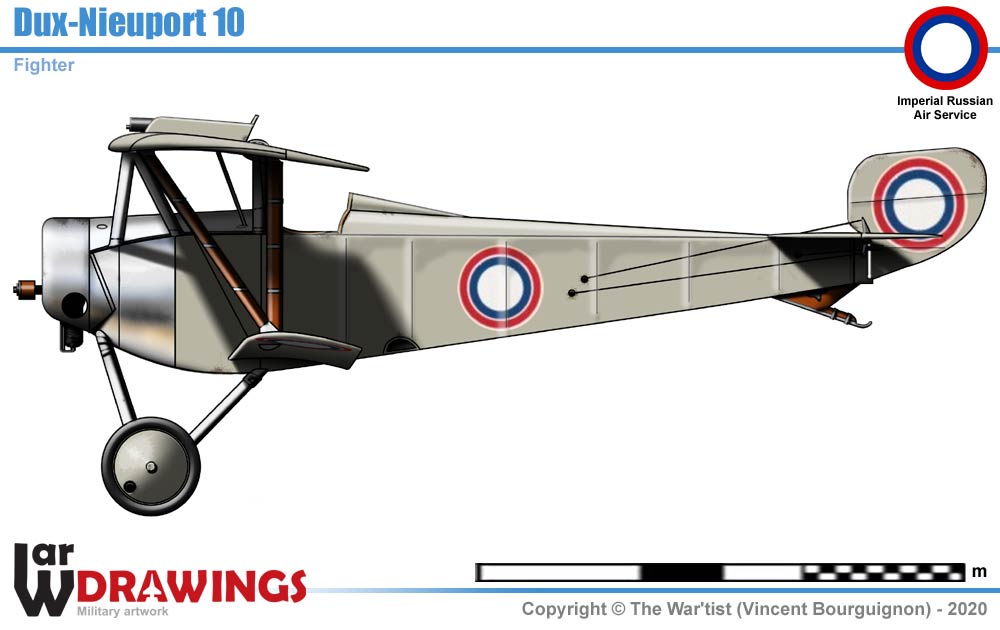

Dux-built
aircraft. It was served at Navy School of aerial combat at Oranienbourg.
|

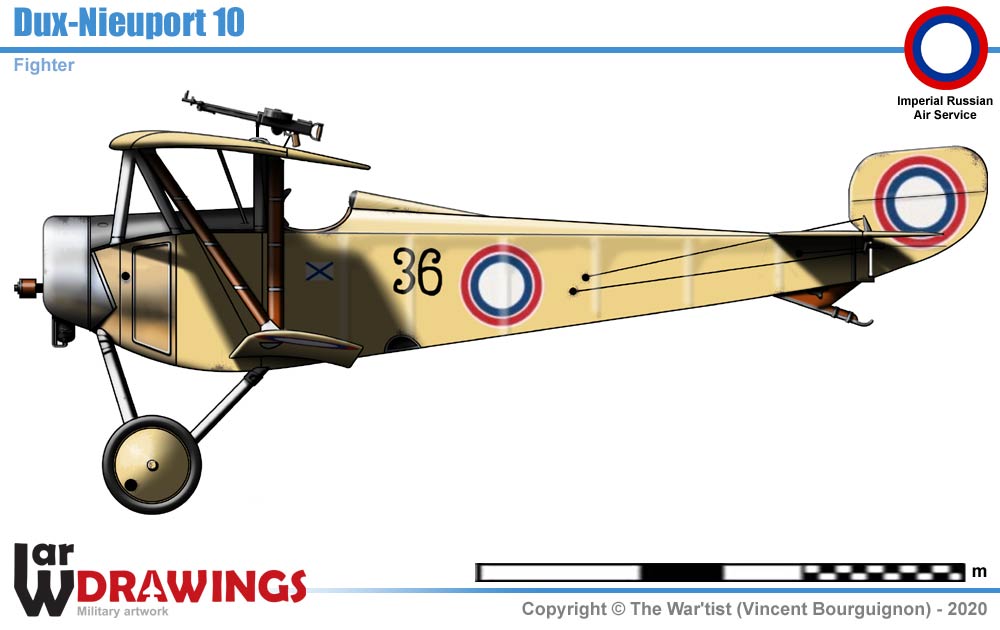

Dux
built aircraft. One seat variant. The plane equipped with Gnome
Monosoupape engine, cowling with additional aperture for cooling
and fixed machinegun Vickers mounted on the upper wing. |

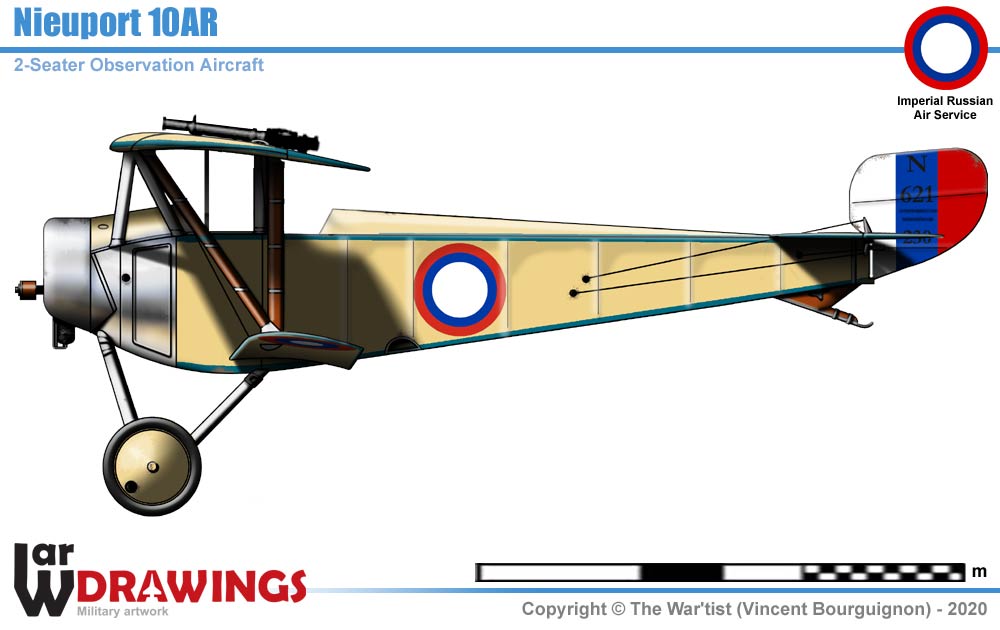

2nd
IAO (them 11th IAO) - Spring 1917. Equipped with infantry machinegun
Luis on upper wing. |
Aviation
of Baltic Fleet - Summer-Autumn 1918. |
| Specifications |
| General |
| Role: Reconnaissance-Fighter Aircraft Crew: 1-2 First flight: 1914 |
| Dimensions |
| Length: 7.50 m | Wingspan: 9.90 m | Height: 2.70 m | Empty weight: 466 kg | Loaded weight: 724 kg |
| Engine |
| 1 × Le Rhône 9C rotary engine | 80 hp | Pistons |
| Performances |
| Maximum speed: 170 km/h | Service ceiling: 3690 m | Range: 240 km |
| Armament |
| 1 machine-gun or none |
