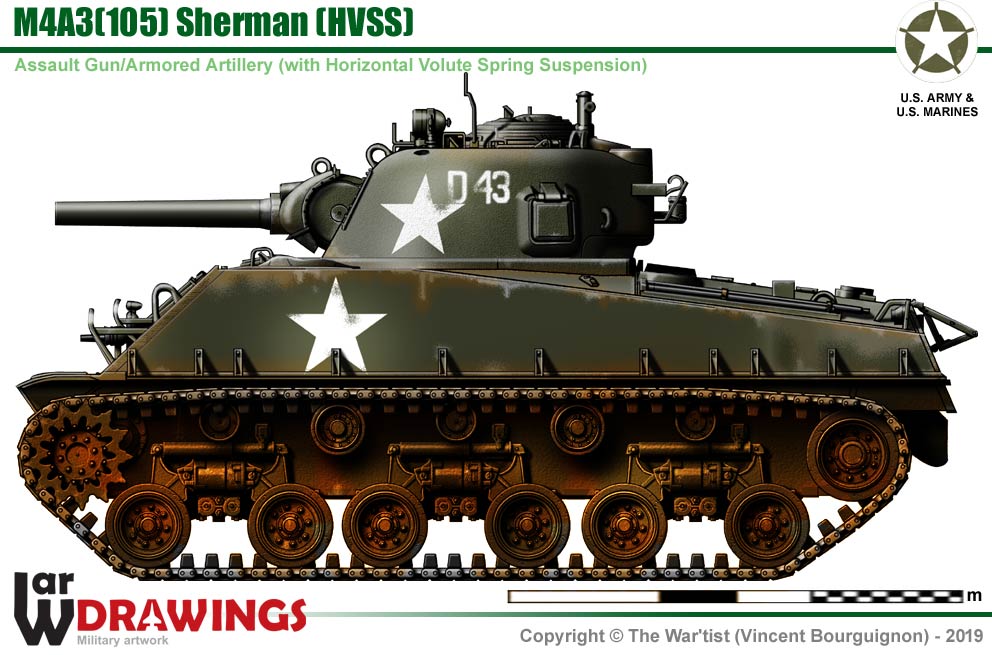

U.S. Marine Corps - Korea, November 1950.



Specifications
General

Type: Assaul Gun/Armored Artillery
Crew: 5 (commander, gunner, loader, driver, assistant driver)
Designed: -
Number built: 2539
Powerplant
Ford GAA V8, 18.0 liters gasoline, 450-500hp
Power/weight: 15.1 hp/t
Dimensions/Masses
Length: 6.27 m | Width: 3.00 m | Height: 2.97 m
Weight: 33100 kg
Armor
108 mm maximum
Performances
Maximum speed: 42 km/h | Range: 161 km
Suspension: Horizontal volute spring suspension (HVSS)
Armament

Main: 105 mm Howitzer M4 on M52 mount (66 rounds)
Secondary: .50 in (12.7 mm) M2 machine gun, (4750 rounds)
2 x .30 cal (7.62 mm) M1919A4 machine guns (600 rounds)
