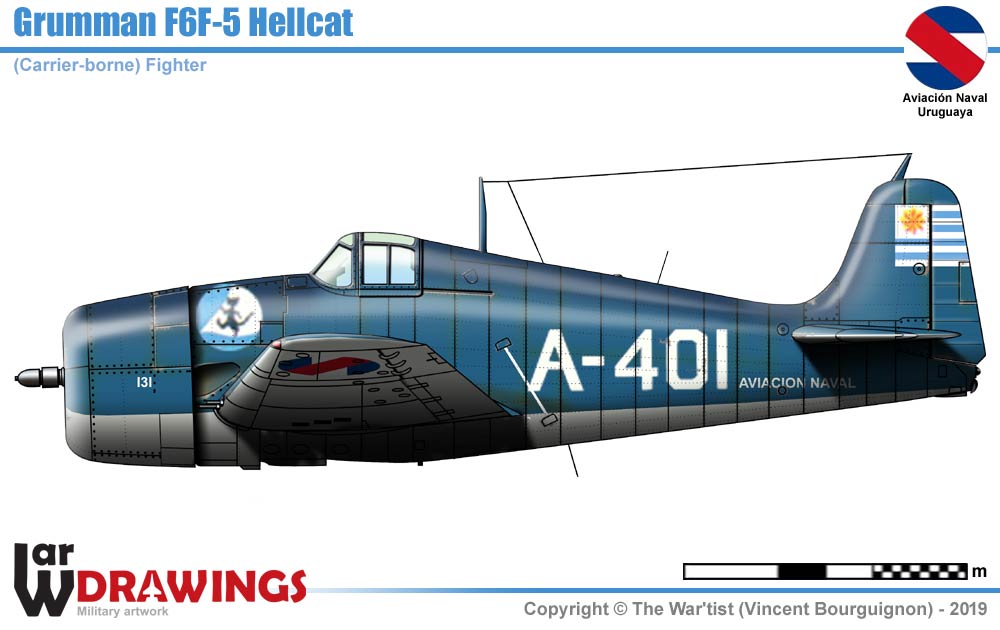

Grumman F6F-5 Hellcat

Modern Drawings/Air/Uruguay/Fighters/Others/F6F-5.htm | Update: 03-07-2019

Escuela de Especializacion Aeronaval - Laguna del Sauce AB, The middle of 1950s.

Specifications (F6F-5)

General

Type: Fighter
Crew: 1
First flight: 26 June 1942
Number built: 2275 (all F6F)

Powerplant

1 × Pratt & Whitney R-2800-10W "Double Wasp" radial engine |
2000 hp at 2250 hp| Pistons

Dimensions/Masses

Length: 10.24 m | Wingspan: 13.06 m | Height: 3.99 m
Wing area: 31 m² | Empty weight: 4190 kg
Loaded weight: 5714 kg | Max takeoff weight: 6990 kg

Performances

Maximum speed: 621 km/h | Ferry range: 2460 km with external tanks
Service ceiling: 11370 m

Armament

Inside: 6× .50 in (12.7 mm) M2 Browning MG
Outside: up to 1814 kg full load
