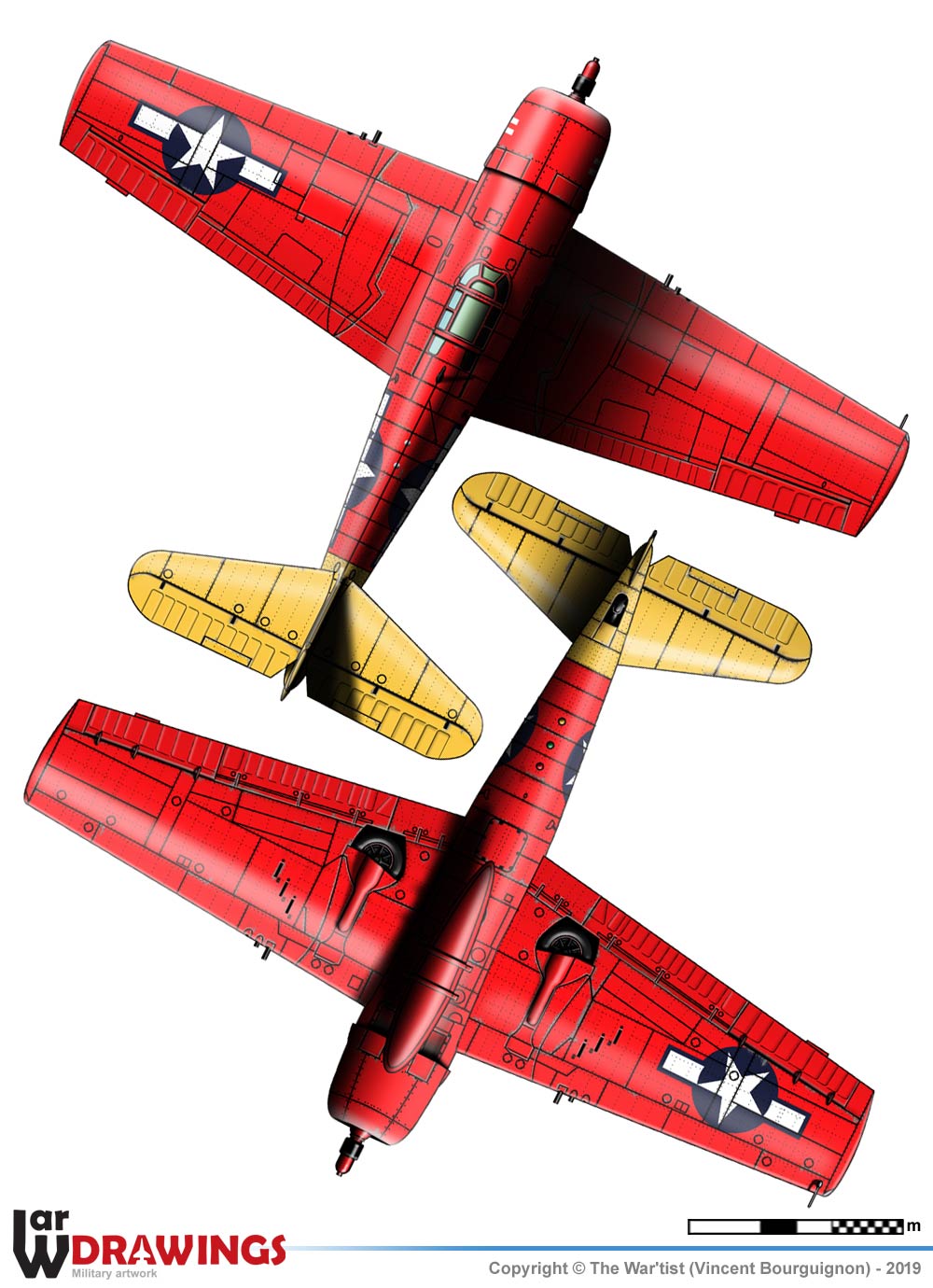

US Navy - Naval Air Station Atlantic City, New Jersey during March of 1946.
These drones were later used in Operation Crossroads, one of the atomic bomb tests.





Specifications (F6F-3K)
General

Type: Target Drone
Crew: -
First flight: 26 June 1942
Number built: 2275 (all F6F)
Powerplant
1 × Pratt & Whitney R-2800-10"Double Wasp" radial engine |
2000 hp at 2250 hp| Pistons
Dimensions/Masses
Length: 10.24 m | Wingspan: 13.06 m | Height: 3.99 m
Wing area: 31 m² | Empty weight: 4101 kg
Loaded weight: ? kg | Max takeoff weight: 6000 kg
Performances
Maximum speed: 621 km/h | Ferry range: 2460 km with external tanks
Service ceiling: 11370 m
Armament

Inside: 6× .50 in (12.7 mm) M2 Browning MG
Outside: -
