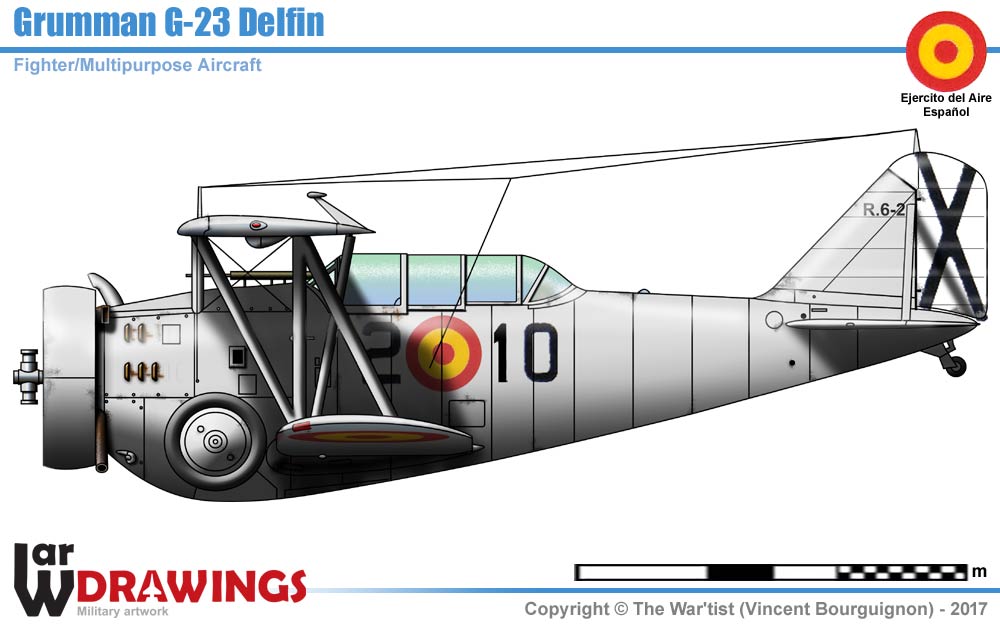

Grumman G-23 Dolfin

Modern Drawings/Air/Spain/Others/G-23.htm | Update: -

2.Regimento, Ejercito del Aire - Tefuan airbase, Spain, 1954

Specifications

General

Type: ex Fighter , Multirole Aircraft
Crew: 2
First flight: 29 December 1931
Introduction: June 1933
Number: Export variant for Spain, 34-built.

Powerplant

1 × Wright R-1820-78 Cyclone radial engine | 700 hp | Pistons

Dimensions/Masses

Length: 7.47 m | Wingspan: 10.52 m | Height: 3.38 m
Wing Area: 28.8 m² | Empty weight: 1405 kg
Max. takeoff weight: 2121 kg

Performances

Maximum speed: 333 km/h | Range: 1100 km
Service ceiling: 6735 m

Armament

Inside: 2 × 0.30 in (7.62 mm) M1919 Browning MG
Hardpoints: 1 × 45 kg bomb
