Fokker F-16AM Block 20

Modern Drawings/Air/Netherlands/Fighters/F-16-Fighting-Falcon/F-16AM_Block20.htm | Update: -

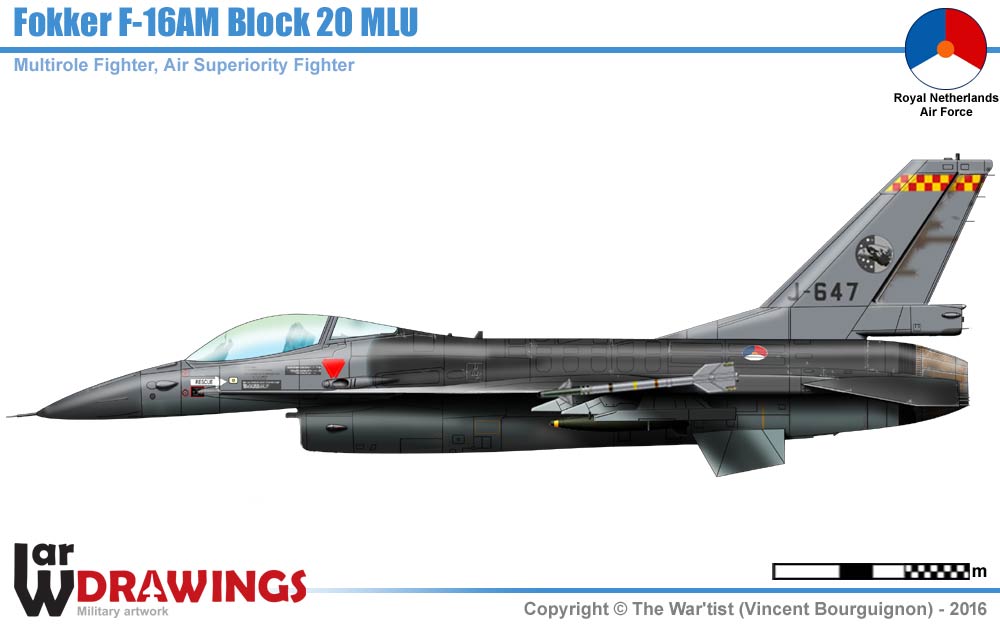

June 1994.

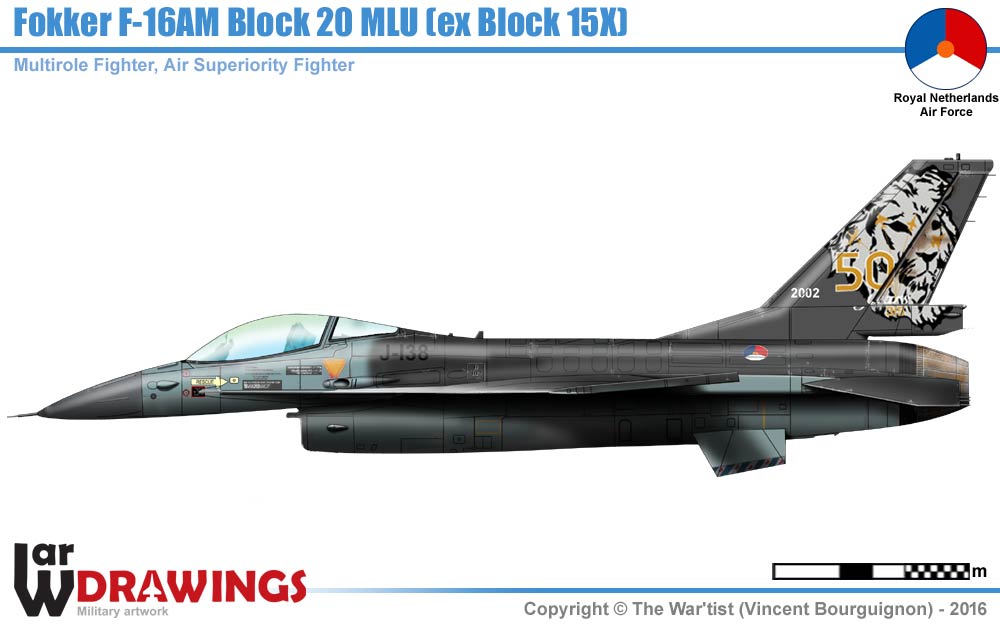

315 Sqn "Lion" - Netherlands, 2nd July 2002 (50th Anniversary of 315 Squadron)

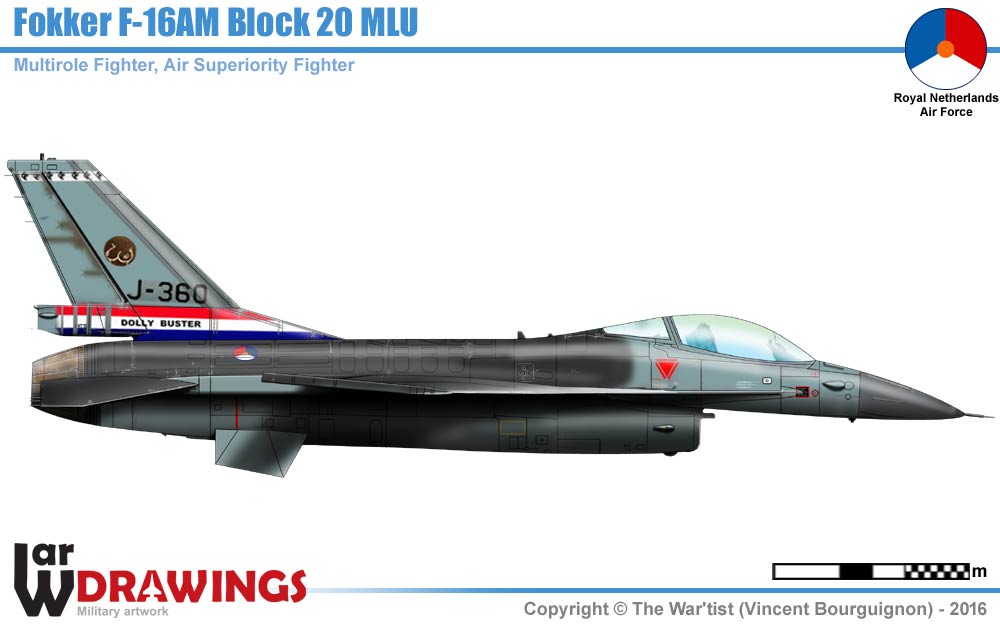

306 Sqn "Hawk" - Circa 1982.

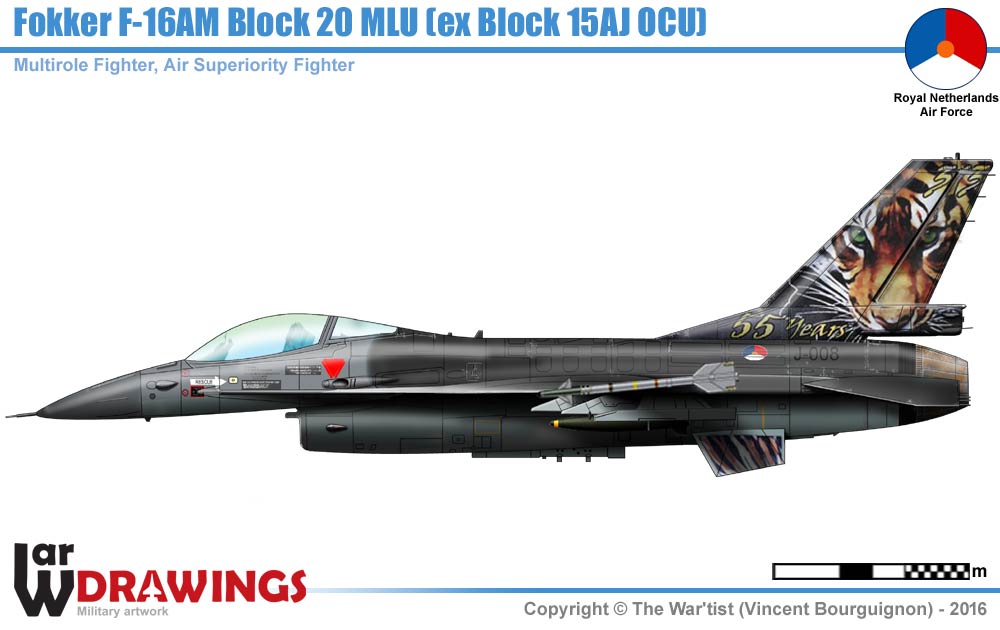

313 Sqn "Tiger" - November 2008 (55th anniversary of 313 Sqn)

Specifications F-16A

General

Type: Fighter-Bomber
Crew: 1
First flight: 2 February 1974
Introduction: 1979
Number built: 213 delivered more than 61 in service in some aerobatic

Powerplant

1 x Pratt & Whitney F100-PW-229
Dry thrust: 79 kN
Thrust with afterburner: 106 kN

Dimensions/Masses

Length: 14.80 m | Wingspan: 9.80 m | Height: 4.80 m
Wing area: 27.87 m2
Empty weight: 8272 kg | Max takeoff weight: 16900 kg

Performances

Maximum speed: 2173 km/h (Mach 2,05)
Combat radius: 550 km | Ferry range: ? km
Service ceiling: 15200 m

Armament

Inside: 1 × 20 mm (0.787 in) M61A1 Vulcan
Outside: Air-to-air missiles Sidewinder, ASRAAM, Magic 2, AMRAAM, Sparrow, Air-to-ground missile Maverick, anti-radar missile HARM or bombs (some guided by laser), or rockets.
