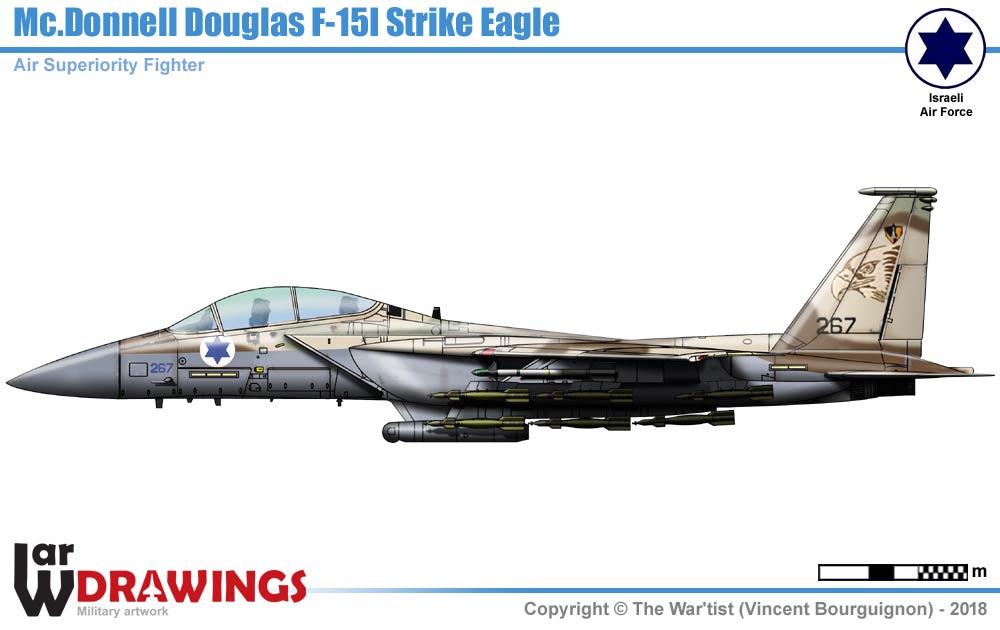

69 tajeset "Hammers", IDF/AF - Circa 2001.



Specifications
General

Type: Multirole fighter, strike fighter
Crew: 2
First flight: 11 December 1986
Introduction: April 1988
Number built: 84 F-15A/B/C/D/I in service as of November 2017
Powerplant
2 × Pratt & Whitney F100-PW-220 or -229 afterburning turbofans
Dry thrust: 64.9 kN each
Thrust with afterburner: 105.7 kN (for -220) or
129.7 kN (for -229) each
Dimensions/Masses
Length: 19.43 m | Wingspan: 13.05 m | Height: 5.63 m
Wing Area: 56.5 m² | Empty weight: 14300 kg
Loaded weight: ? kg | Max. takeoff weight: 36700 kg
Performances
Maximum speed: Mach 2.5+ (3017 km/h)
Combat radius: 1270 km | Ferry range: 3900 km
Service ceiling: 18200 m
Armament

Inside: 1× 20 mm (0.787 in) M61A1 Vulcan 6-barreled gatling cannon, 500 rounds
Hardpoints: 2 wing pylons, fuselage pylons, bomb racks on CFTs with a capacity of 10,400 kg of external fuel and ordnance
