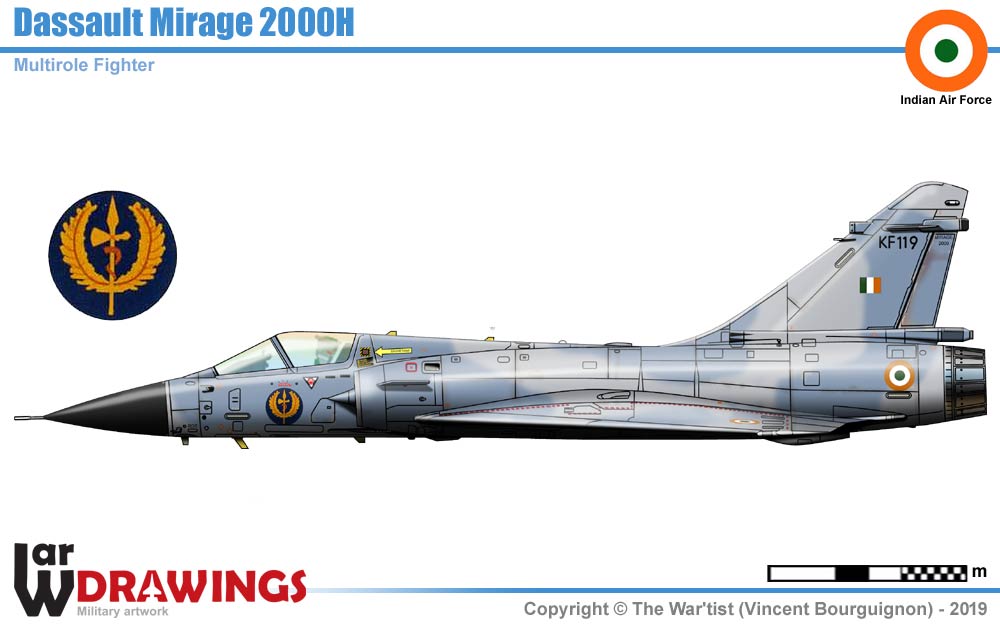

Modern Drawings/Air/India/Fighters/Mirage-2000/Mirage-2000H.htm | Update: -





7 Sqn, IAF - No additional information



Specifications
General

Type: Fighter
Crew: 1
First Flight: 10 March 1978
Number: 42 (upgraded to 2000I)
Powerplant
1 × SNECMA M53-P2 afterburning turbofan
Dry thrust: 64.3 kN | Thrust with afterburner: 95.1 kN
Dimensions/Masses
Length: 14.36 m | Wingspan: 9.13 m | Height: 5.20 m
Wing area: 25.00 m² | Empty weight: 7500 kg
Loaded weight:: 13800 kg | Max takeoff weight: 17000 kg
Performances
Maximum speed: Mach 2.2 (2653 km/h)
Service ceiling: 20000 m | Range: 1550 km (837 nmi, 963 mi)
Ferry range: 3335 km (1800 nmi, 2073 mi)
Armament

Guns: 2× 30 mm (1.18 in) DEFA 554 revolver gun
Rockets: Matra 68 mm unguided rocket pods, 18 rockets/pod
Bombs: 9× Mk.82 (6300 kg max)
Missiles: 6× MBDA MICA IR/RF, 2× Matra R550 Magic-II and 2× Matra Super 530D, 2× AM.39 Exocet, 2× AS-30L laser guided missile, 1× ASMP tactical nuclear cruise missile
