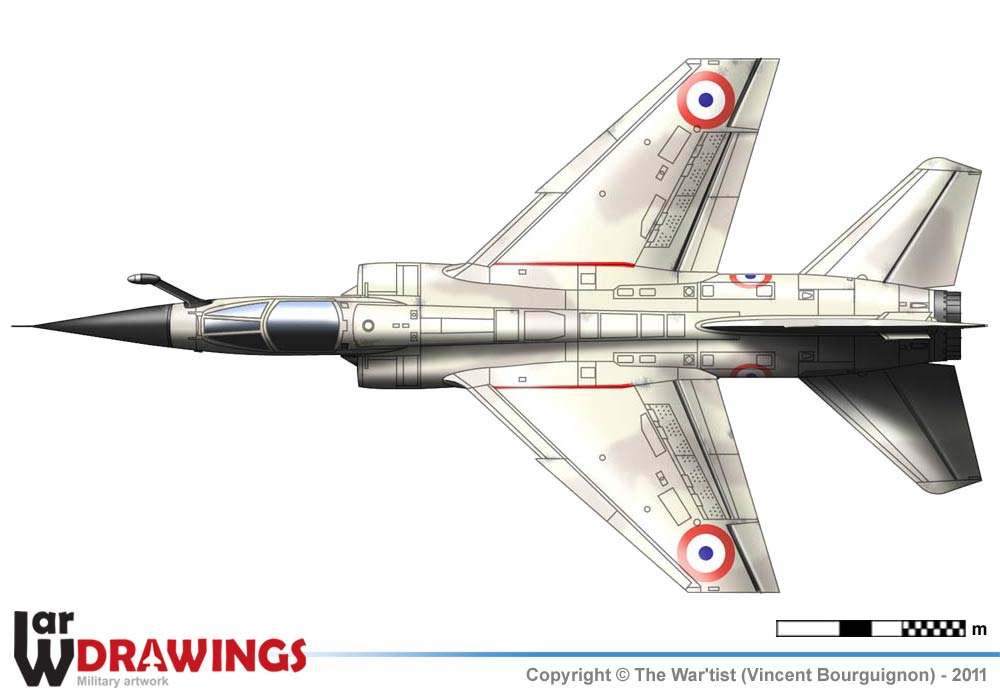

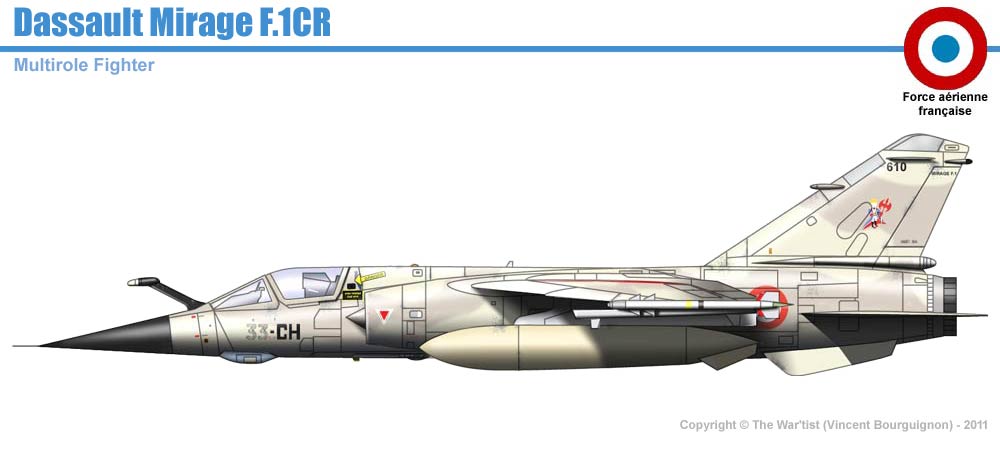

ER 1/33 "Belfort", Armée de l'Air - BA-112 Reims, 1993.



Specifications
General

Type: Fighter
Crew: 1
First Flight: 23 December 1966
Number built: >720
Powerplant
1 × SNECMA Atar 9K-50 afterburning turbojet
Dry thrust: 49.03 kN | Thrust with afterburner: 70.6 kN
Dimensions/Masses
Length: 15.30 m | Wingspan: 8.40 m | Height: 4.50 m
Wing area: 25.00 m² | Empty weight: 7400 kg
Loaded weight:: 10900 kg | Max takeoff weight: 16200 kg
Performances
Maximum speed: Mach 2.2 (2338 km/h)
Service ceiling: 20000 m | Range: 425 km (230 nm, 265 mi)
Ferry range: 2150 km (1160 nm, 1335 mi)
Armament

Guns: 2× 30 mm (1.18 in) DEFA 553 gun
Rockets: 18× SNEB 68 mm rockets each
Bombs: various
Missiles: 2× AIM-9 Sidewinders OR Matra R550 Magics on wingtip pylons, 2× Super 530Fs underwing, 1× AM-39 Exocets anti-ship missile, 2× AS-30L laser guided missiles
