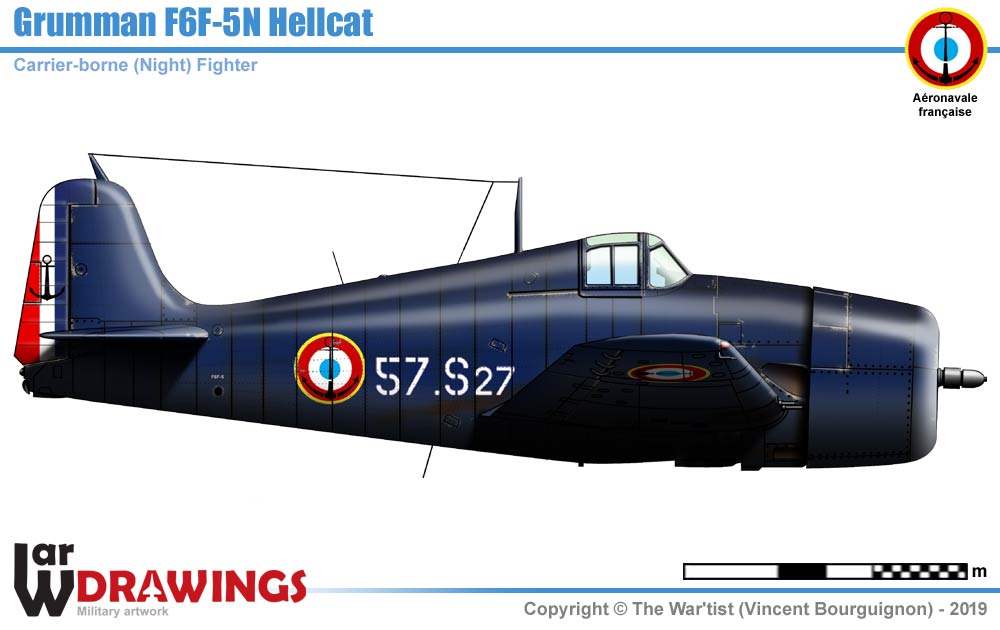

57 Escadrille de Servitude, Aéronavale - BAN Istres, France, circa 1955.



Specifications
General

Type: Shipborne Fighter
Crew: 1
Production: 1942-1945
Number built: 12275 (all versions)
Powerplant
1 x Pratt & Whitney R-2800-10W 18-cyl engine, 2200 hp
Dimensions/Masses
Length: 10.24 m | Wingspan: 13.06 m | Height: 3.99 m
Wing area: 31 m² | Empty weight: 4190 kg
Loaded weight:: 5714 kg | Max takeoff weight: 6990 kg
Performances
Maximum speed: 610 km/h
Service ceiling: 11370 m | Range: 1520 km
Armament

Inside: 6 x 12.7 mm .50 (12.7 mm) M2 MG
Outside: 1814 kg of bombs or 6 x rockets 12.7 mm HVAR
