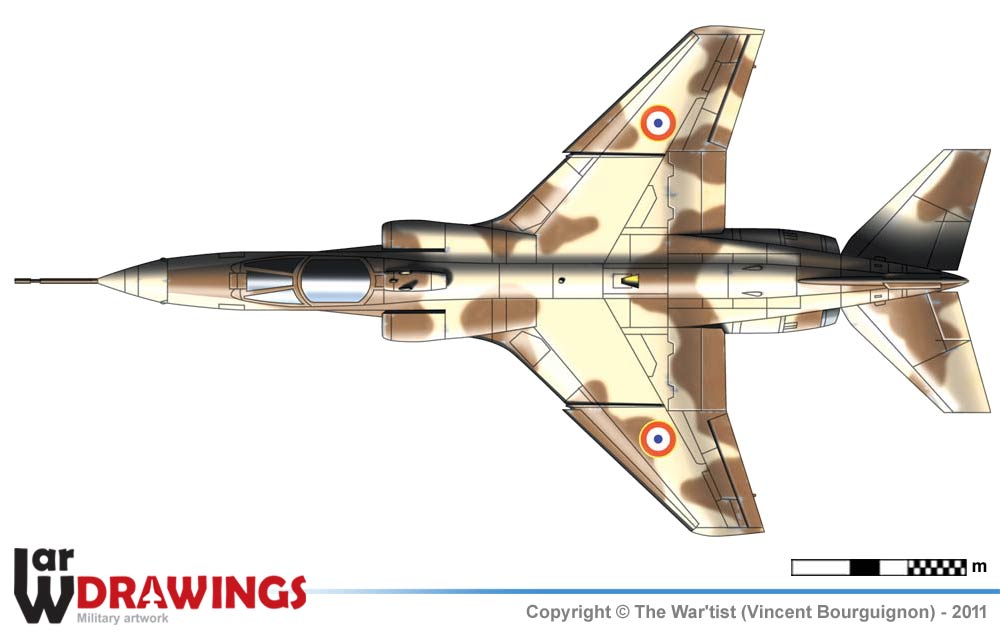

EC 4/11 "Jura", Armée de l'Air - Bordeaux-Merignac AB.



Specifications
General

Type: Ground Attack Aircraft
Crew: 1
First Flight: 8 September 1968
Number built: 543
Powerplant
2 × Rolls-Royce/Turbomeca Adour Mk 102 turbofans
Dry thrust: 2x 22.75 kN | Thrust with afterburner: 2x 32.5 kN
Dimensions/Masses
Length: 16.83 m | Wingspan: 8.69 m | Height: 4.89 m
Wing area: 24.2 m² | Empty weight: 7000 kg
Loaded weight:: 10954 kg | Max takeoff weight: 15700 kg
Performances
Maximum speed: Mach 1.6 (1,699 km/h)
Service ceiling: 14000 m | Range: 908 km (490 nmi, 564 mi)
Ferry range: 3524 km (1902 nmi, 2190 mi)
Armament

Guns: 2× 30 mm (1.18 in) DEFA gun
Hardpoints: 5 total: 4× under-wing and 1× center-line pylon stations with a capacity of 4,00 kg) and provisions to carry combinations of:

Rockets: 8× Matra rocket pods with 18× SNEB 68 mm rockets each
Missiles:
o AS.37 Martel anti-radar missiles or
o AS-30L laser guided air-to-ground missile.
o 2× R550 Magic air-to-air missiles on underwing pylons
Bombs:
o various unguided or laser-guided bombs or
o 1× AN-52 nuclear bomb
Other: ECM protection pods, Reconnaissance Pod, ATLIS laser/electro-optical targeting pod, external drop tanks for extended range/loitering time
