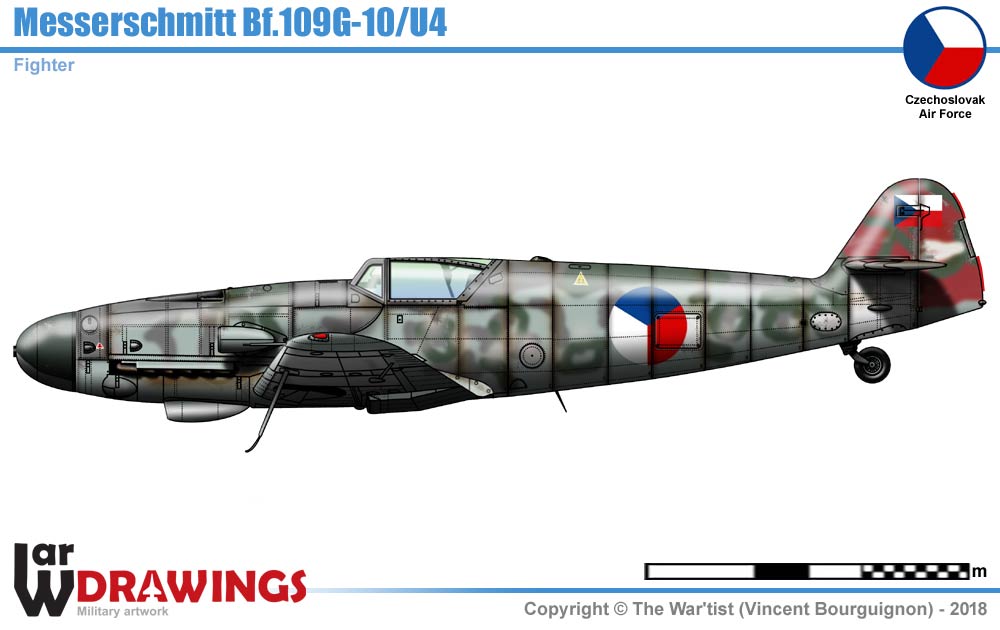

LH SNB - September 1948.



Me Bf109G-10 Specifications

Type: Fighter
Crew: 1

Daimler-Benz DB 605D | 1850 hp | Pistons
Dimensions/Masses
Length: 8.97 m | Width: 9.75 m | Height: 2.50 m
Weight: 2630 kg | Max. Combat Weight: ? kg
Performances
Max. Speed: 685 km/h | Ceiling: 12600 m | Range: 600 km
Armament

MG: 1 x 30mm MK 108 gun & 2 x o 13mm MG 131 MG
Bombs: 250 kg of bombs (Outside)
