No additional information.





No additional information.








25th Regiment of the 9th Division of Naval Aviation - Naval Base Lingshui 2001

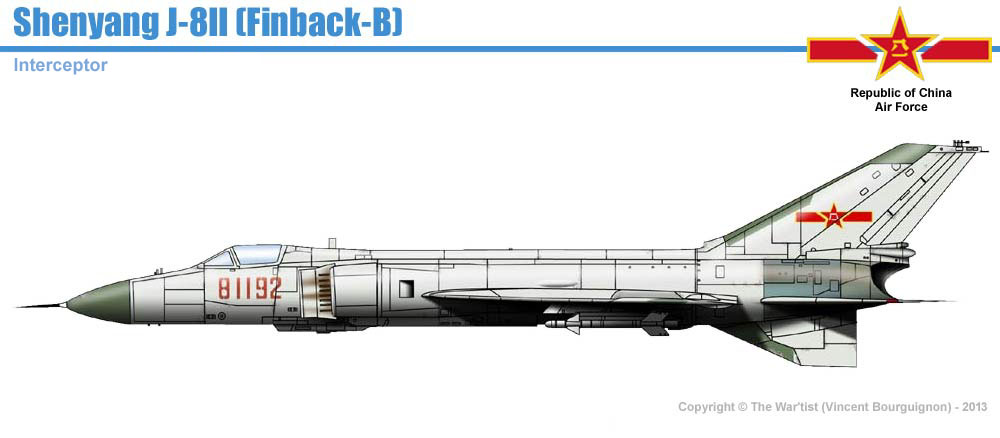

Specifications J-8II
General

Type: Interceptor
Crew: 1
First flight: 12 June 1984s
Introduction: ?
Number built: about 100
Powerplant
2 × WP-13B turbojets
Dry thrust: 47.1 kN each
Thrust with afterburner: 68.7 kN each
Dimensions/Masses
Length: 21.52 m | Wingspan: 9.34 m | Height: 5.41 m
Wing area: 42.2 m²
Empty weight: 10371 kg | Max takeoff weight: 18879 kg
Performances
Maximum speed: Mach 2.2 (2220 km/h) limited
Range: 900-1000 km - Ferry range: ? km
Service ceiling: 11000 m
Armament

Inside: -
Hardpoints: 6 under wing and one centerline hard points for fuel, bombs, rockets or missiles: 4 PL-2 or PL-7 and one 800 litre drop tank, 2 PL-2 or PL-7 and 2 x 480 litre drop tanks and one 800 litre drop tank
