N° 15 Air Transport Wing, Melsbroek

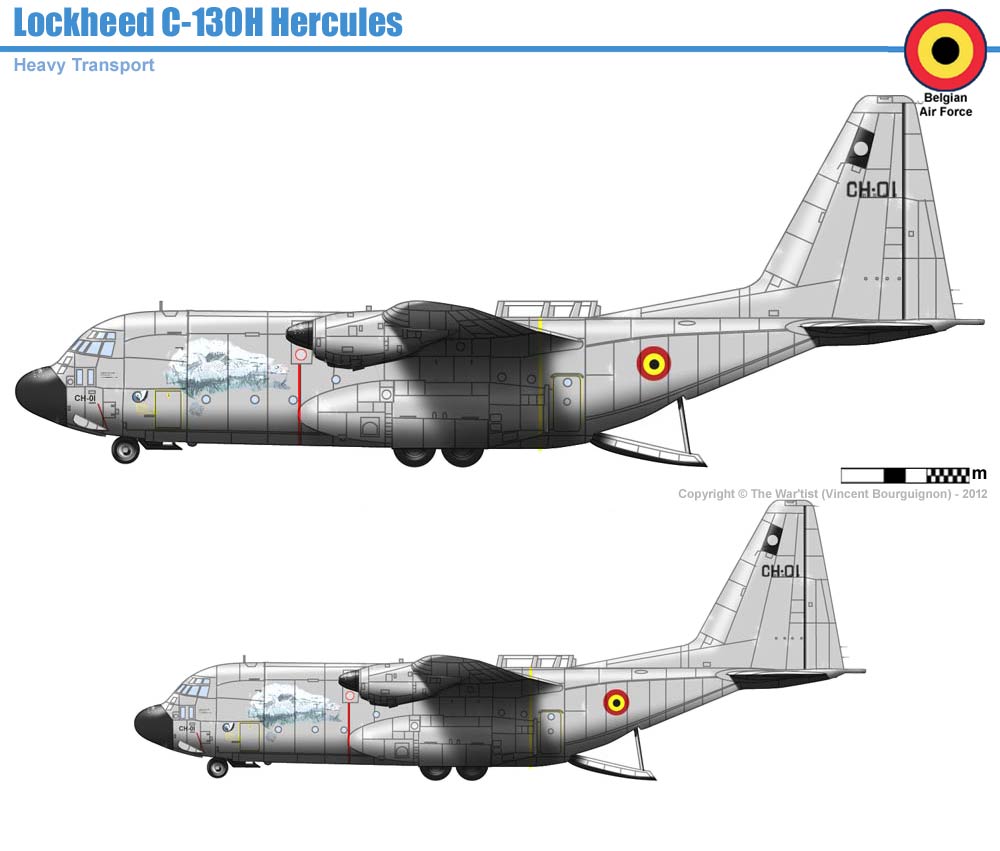

Very rare temporary nose art on CH01 'Nairobi Belle' after return from Kenya.



Specifications
General

Type: Heavy Transport
Crew: 5 + 92 passengers maximum or Payload of 20000 kg
First flight: 23 August 1954
Introduction: 1972
Number built: 12 for Belgium delivered from mid 1972
Powerplant
4 × Allison T56-A-15 turboprops | 4590 hp | Pistons
Dimensions/Masses
Length: 29.8 m | Wingspan: 40.4 m | Height: 11.6 m
Wing area: 162.1 m²
Empty weight: 34400 kg | Max takeoff weight: 70300 kg
Performances
Maximum speed: 592 km/h
Combat radius: ? km | Ferry range: 3800 km
Service ceiling: 10060 m
Armament

Inside: -
Outside: -
