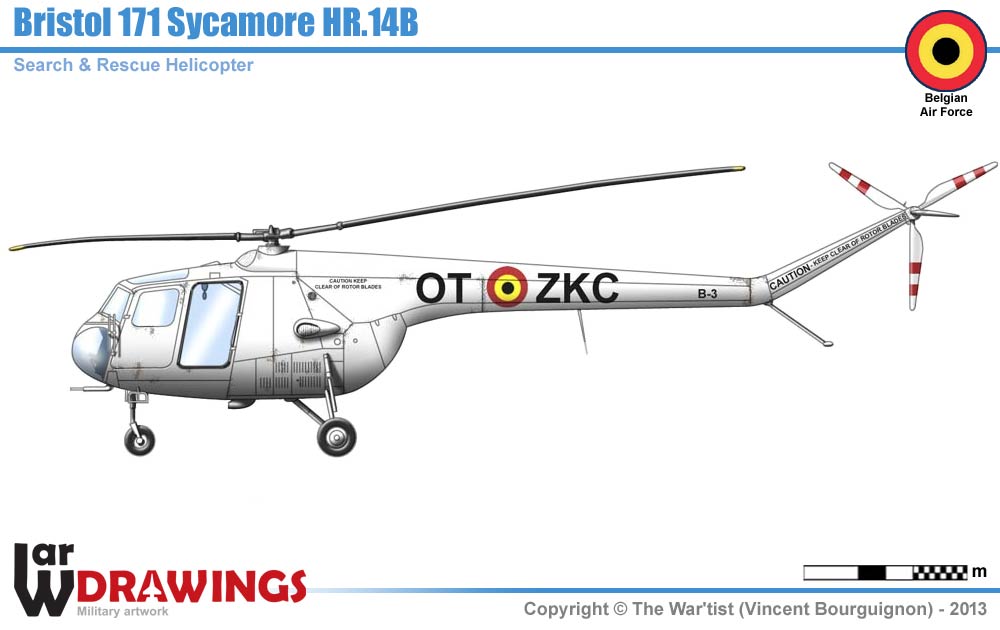

Equipped the metropolitan power in the Congo with a rescue flight based in Kamina. Used between 1954 and 1960.



Specifications
General

Type: Search & Rescue Helicopter
Crew: 2 + 3 passengers or 454 kg of payload
First flight: 27 July 1947
Introduction: 1954 in Belgium
Number built: 3 for Belgium

Powerplant
1 × Alvis Leonides piston engine of 550 hp
Dimensions/Masses
Length: 18.62 m | Rotor Diameter: 14.8 m | Height: 4.23 m
Disc area: 81.7 mm²
Empty weight: 1728 kg | Max takeoff weight: 2540 kg
Performances
Maximum speed: 212 km/h | Range: 531 km
Service ceiling: 2300 m
Armament

Inside: -
Outside: -
