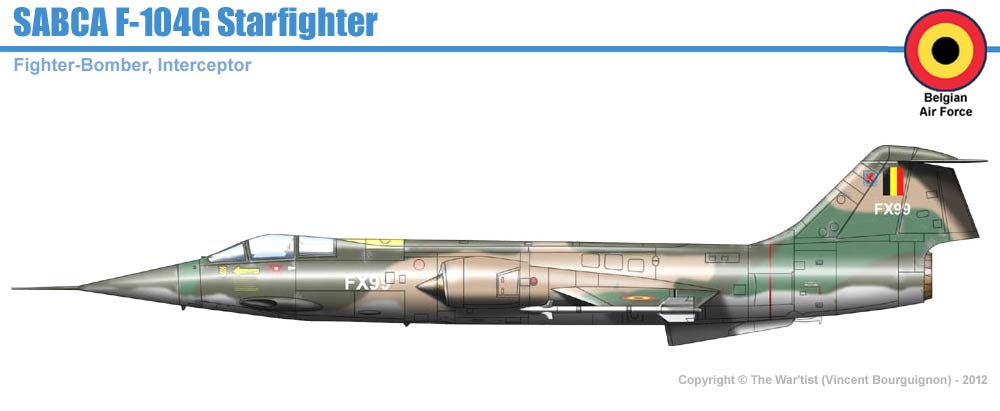

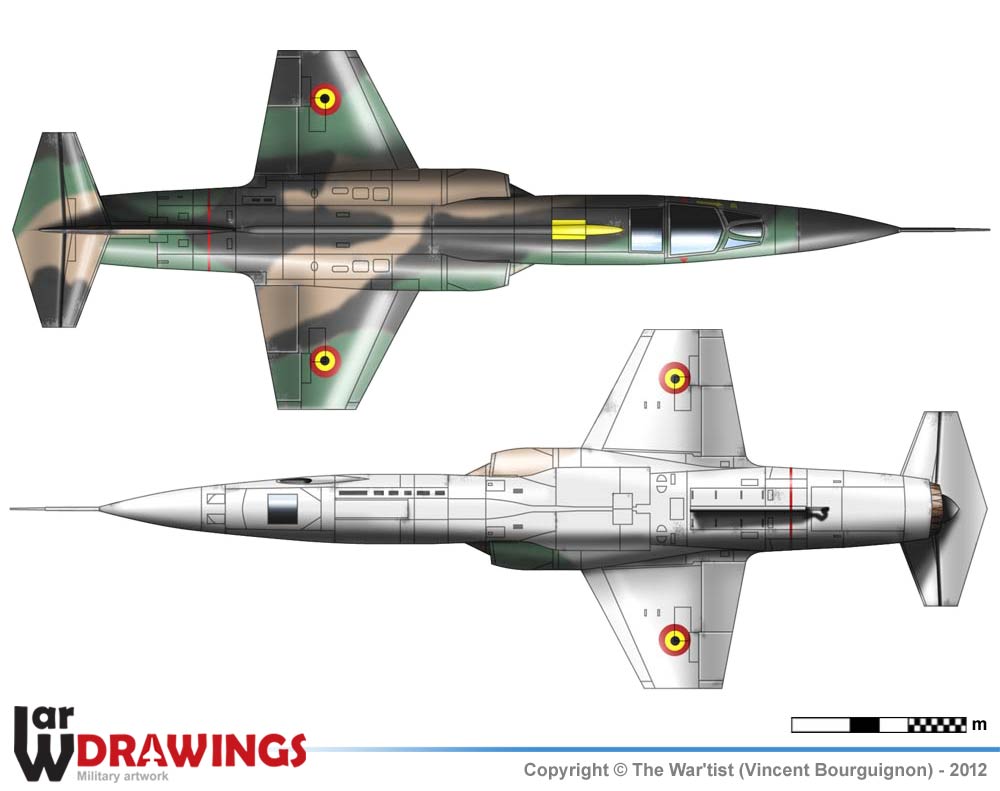

FBS, 10th Fighter-Bomber Wing - Kleine Brogel, Belgium



Specifications F-104G
General

Type: Fighter-Bomber
Crew: 1
First flight: 4 March 1954 (F-104)
Introduction: April 1963 (for Belgium)
Number built: 188 F-104G in Belgium by SABCA
Powerplant
1 × General Electric J79-GE-11A afterburning turbojet
Dry thrust: 48 kN
Thrust with afterburner: 69 kN
Dimensions/Masses
Length: 16.66 m | Wingspan: 6.36 m | Height: 4.09 m
Wing area: 18.22 m²
Empty weight: 6350 kg | Max takeoff weight: 13170 kg
Performances
Maximum speed: 2125 km/h (Mach 2.2)
Combat radius: 670 km | Ferry range: 2623 km
Service ceiling: 15000 m
Armament

Inside: 1 × 20 mm (0.787 in) T171 Vulcan 6-barreled Gatling, 725 rounds
Outside: 7 hardpoints with a capacity of 1814 kg and provisions to carry combinations of:

  • Missiles: 4 × AIM-9 Sidewinder
  • Other: Bombs, rockets, or other stores
