Panavia Tornado ADV

Modern Drawings/Air/Arabia Saudi /Fighters/Tornado/Tornado-ADV.htm | Update: -

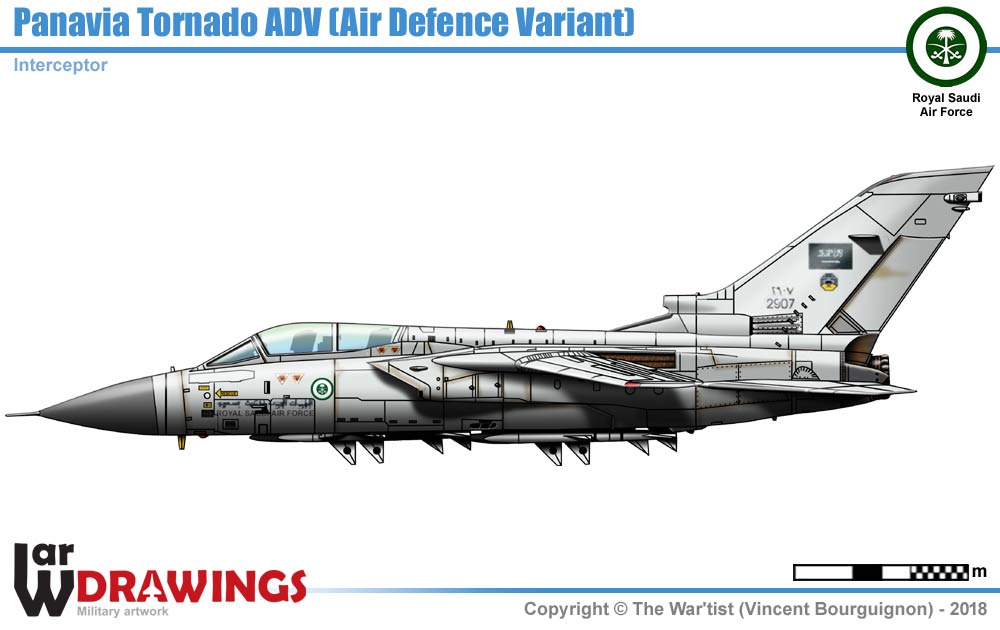

29 Sqn, RSAF - The Royal Saudi Air Force had three Tornado ADV squadrons.

Specifications

General

Type: Interceptor
Crew: 2
First flight: 14 August 1974
Introduction: 1979
Number built: 96 IDS and 24 ADV Tornados delivered.
By December 2011 82 IDS aircraft remained in service.

Powerplant

2 × Turbo-Union RB199-34R Mk 104 afterburning turbofans
Dry thrust: 43.8 kN each
Thrust with afterburner: 76.8 kN each

Dimensions/Masses

Length: 16.72 m | Wingspan: 13.91 m at 25° wing sweep,
8.60 m at 67° wing sweep | Height: 5.95 m
Wing area: 26.6 m² | Empty weight: 13890 kg
Max takeoff weight: 28000 kg

Performances

Maximum speed: Mach 2.2 (2,400 km/h)
Combat radius: 1390 km | Ferry range: 3890 km
Service ceiling: 15240 m

Armament

Inside: 1 × 27 mm (1.06 in) Mauser BK-27 revolver gun
Outside: 9000 kg of payload on 11 external hardpoints
